1 Urinal Set - Coronus 500: Exposed Trap, Flushpipes & China Cistern

THIS PRODUCT IS USUALLY DELIVERED IN 2-4 WORKING DAYS, DIRECT FROM GENTWORKS

The Coronus is a great value 500mm height wall mounted urinal in vitreous china.

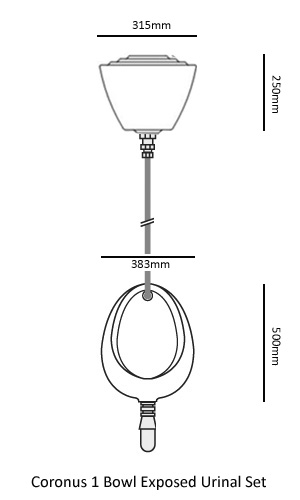

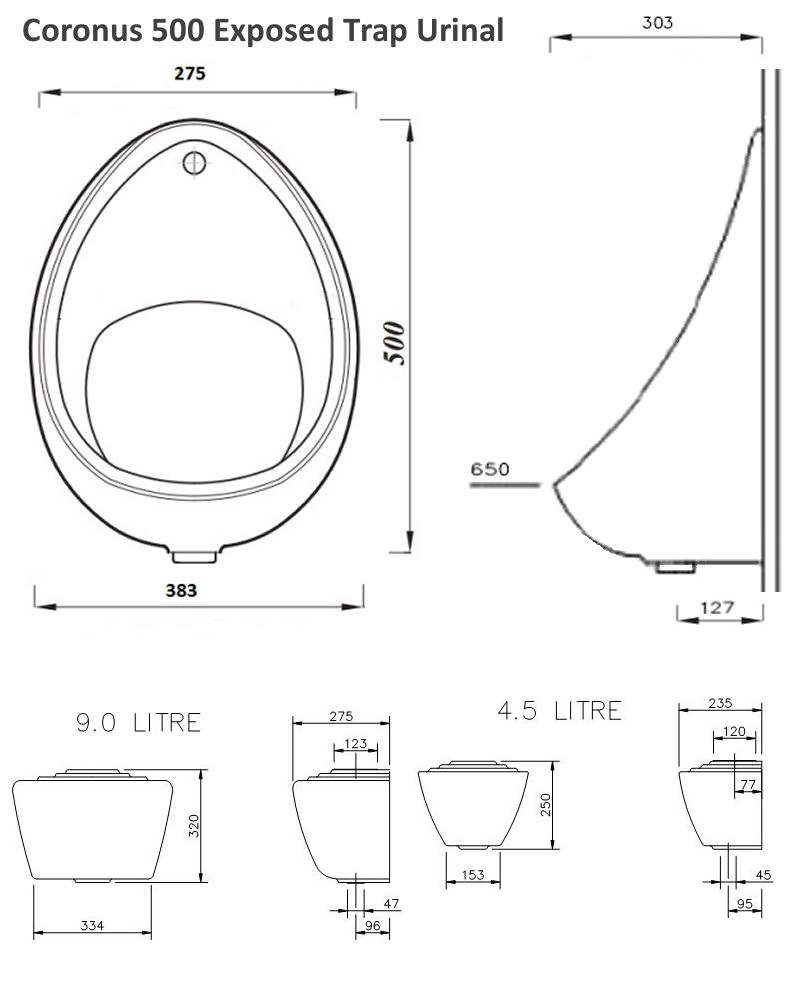

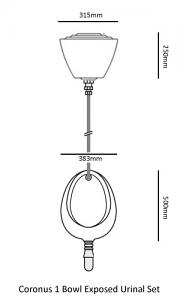

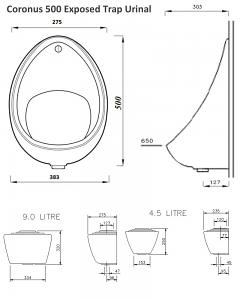

Bowl Dimensions:  Height = 500mm  Width = 383mm  Projection from wall = 303mm

Pack Type: For exposed installation, with the cistern mounted on the same side of the wall above the urinal. Includes everything required from the cistern down to the waste traps.

•     Standard spreader flushing urinal
•     Shallow open bowl design
•     Water guide channels for efficient flushing
•     Large 500mm Height by 383mm Width
•     Similar in design to more expensive brands

Pack includes:
- 1 x Coronus 500 Urinal
- 1 x 4.5 litre China Auto Cistern c/w Hangers, Syphon & Petcock
- 1 x Exposed Stainless Steel Sparge Pipe Set with Pipe Clips (for 1 urinal)
- 1 x Top Entry Flushing Spreader
- 1 x Pair of  Urinal Wall Hangers
- 1 x Domed 38mm Waste Outlets - White

Optional Traps:
- McAlpine C10 White Plastic Bottle Trap
- McAlpine C10AR Chrome Plastic Bottle Trap

 Product Data Sheet Coronus 500mm Exposed Trap Urinal
