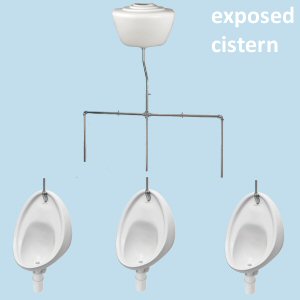

3 Urinals Set - Armitage Shanks Sanura 500: Exposed Trap, Flushpipes & China Cistern

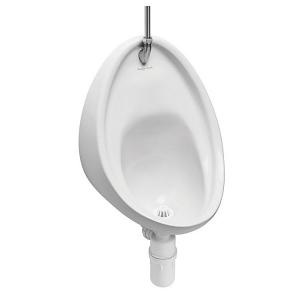

The Sanura 500 from Armitage Shanks is a wall mounted urinal in vitreous china.

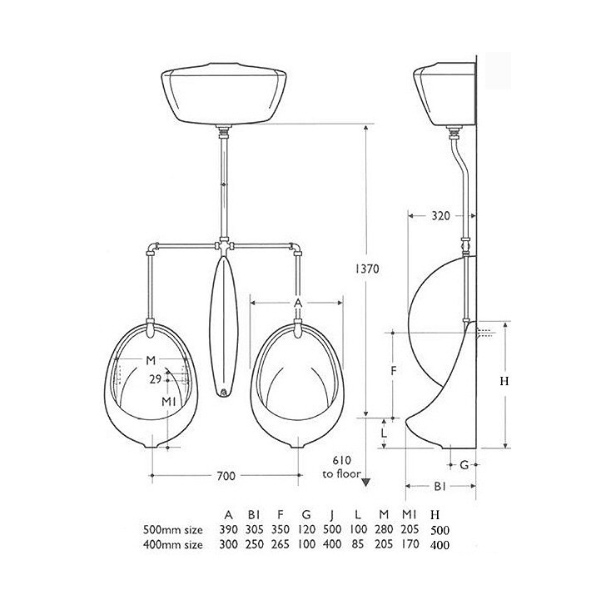

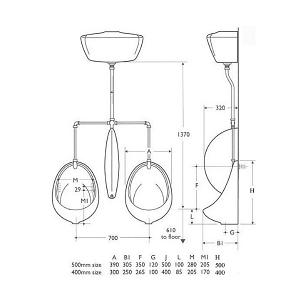

Bowl Dimensions:  Height = 500mm  Width = 390mm  Projection from wall = 305mm
A smaller model, the Sanura 400, is also available.

Pack Type: For exposed installation, with the cistern mounted on the same side of the wall above the urinal. Includes everything required from the cistern down to the waste trap. The Gentworks china auto cistern does not have any visible brand markings.

Pack includes:

- 3 x Sanura 500 urinals
- 1 x Gentworks 9 litre china auto cistern

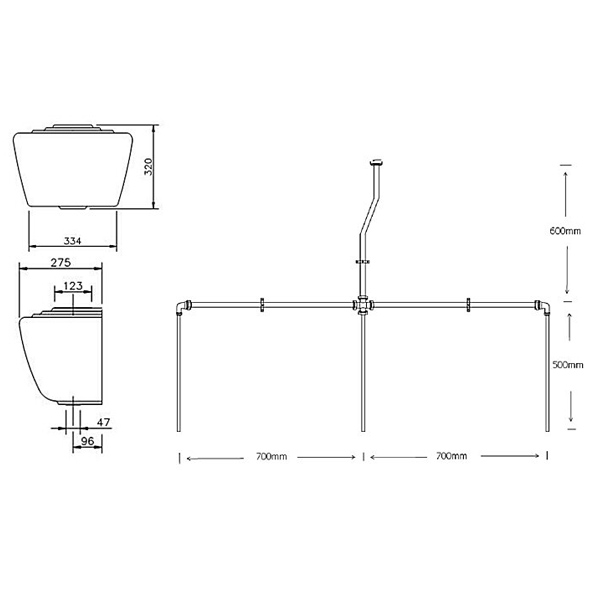

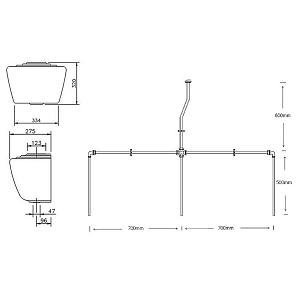

- 1 x Exposed Stainless Steel Sparge Pipe Set (for 3 urinals)
- 3 x Top Entry Flushing Spreaders
- 3 x Pairs of Wall Hangers
- 3 x Domed Waste Outlets
- 3 x Plastic Bottle Traps

 Gentworks China Auto Cistern Data Sheet
