Quick Delivery Standard Wall Hung Urinal - Two Lengths Available
BL1200MTS-C
|
Quick Delivery BL Wall-Hung Urinal Trough in 1200mm or 1800mm Our two most popular urinals kept in stock for quick dispatch. If you require a different size or options and can wait longer, please see our Standard Wall Hung Urinal range in related products below. Projection from wall = 280mm Height = 585mm
Stocked lengths: 1200mm (2 Person) & 1800mm (3 Person)
Locked options: Top Inlet with Centre Drain only Manufactured in the UK as one piece units from grade 304 austenitic stainless steel, 1.2mm thick, with a smooth satin polished non-reflective surface. A stainless steel box conceals the horizontal sparge pipes to discourage tampering.
The urinals are supplied with combination ends suitable for either exposed or side-wall applications. Each urinal comes with a stainless steel downpipe, downpipe clips and stainless steel fixing screws. Pack Includes:
- Urinal Trough - Central 38mm (1.5") Waste Outlet fitting
- Plastic Auto Cistern and Auto Siphon - Downpipe and sparge pipe - Fittings - Fixing screws
 Product data sheet |
£384.00
(ex VAT)
Standard Wall Hung Trough Urinal with Automatic Flushing
BL1200-
|
Current production and delivery time is around 8-10 working days (Scotland adds 3 working days) BL Range of wall-hung urinal troughs Projection from wall = 280mm Height = 585mm
Standard lengths: 1200mm, 1500mm, 1800mm, 2100mm, 2400mm
Standard top-entry models are usually delivered in 10-12 Working Days (Scotland adds 3 working days). All are manufactured in the UK as one piece units from grade 304 austenitic stainless steel, 1.2mm thick, with a smooth satin polished non-reflective surface. A stainless steel box conceals the horizontal sparge pipes to discourage tampering. For additional cost, the urinal can be configured for rear entry of the downpipe, thus allowing the cistern and downpipe to be hidden behind panels or a stud wall. There are also options to upgrade to a stainless steel cistern, downpipe cover and trap cover. The urinals are supplied with combination ends suitable for either exposed or side-wall applications. Each urinal comes with a stainless steel downpipe, downpipe clips and stainless steel fixing screws. Pack Includes:
- Urinal Trough - 38mm (1.5") Waste Outlet fitting (choice of location)
- Plastic Cistern and Auto Siphon (upgradeable to stainless steel cistern) - Downpipe and sparge pipe - Fittings - Fixing screws
Product data sheet |
£384.00
(ex VAT)

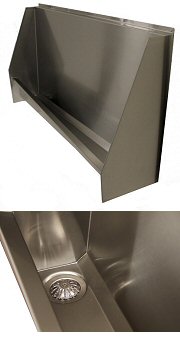

GW6 Tabernas Waterless Urinal Trough
GW6TABERNAS12
|
Current production and delivery time is around 8-10 working days (Scotland adds 3 working days) GW6 Tabernas Stainless Steel Waterless Urinal Trough The GW6 Tabernas waterless urinal trough uses the same GW6 valve core as the popular GW6 cartridge and are manufactured to order in the UK. They are one piece units made from grade 304 austenitic stainless steel, 1.2mm thick, with a smooth satin polished non-reflective surface.
The urinals are supplied with combination ends suitable for either exposed or side-wall applications. Each urinal comes fitted with the GW6 housing and valve, as well as stainless steel fixing screws.
 Key Benefits:
The GW6 valve core cartridge uses a silicone double-skirt valve which is tolerant of both water and common cleaning chemicals. Click here for more about the GW6.
Cleaning
The GW6 waterless urinal system is tolerant of standard cleaning chemicals but care should be taken with stainless steel products. Only mild products should be used. For best results, we recommend Bactericidal Cleaner for stainless steel urinals. The surface of the urinal needs to be wiped down regularly to maintain cleanliness.
How to avoid blockages in waste pipes
Whilst the waste pipes of waterless urinals block less frequently than for most flushed urinals, uric acid salts can still form a sludge which eventually could cause a blockage. Sludge can be a particular problem if the waste pipes are shared with sinks or are poorly configured. Gentworks recommends periodic sluicing with Bactericidal Cleaner to break down this sludge and carry it away into the main drain. The GW6 valve can be sluiced regularly; once every 2 to 4 weeks is recommended. The solution used should be approximately 1 part Bactericidal Cleaner to 9 parts warm water from the washroom hot tap. Sluicing volume should be approximately 2 litres for the Tabernas models.
Includes:
- 1 x GW6 Tabernas waterless urinal trough
- GW6 housing with valve, backnut and washers with GW6 cartridge prefitted |
£445.00
(ex VAT)
VR Wall Hung Trough Urinal with Extra Thickness Stainless Steel
VR1200-
|
Current production and delivery time is around 10-12 working days. VR Range Wall-Hung Urinal Troughs - 5 standard sizes, made from 1.5mm thick stainless steel
Projection from wall = 280mm Height = 585mm
Standard lengths = 1200mm, 1500mm, 1800mm, 2100mm, 2400mm
The new Vandal Resistant model offers the robustness of 1.5mm thick Grade 304 stainless steel, and at a lower price than its predecessor. Standard top-entry models are finished to order in the UK and can typically be delivered in 10 to 12 Working days. This model is manufactured in the UK as a one piece unit from grade 304 austenitic stainless steel, 1.5mm thick, with a smooth satin polished non-reflective surface. A stainless steel box conceals the horizontal sparge pipes to discourage tampering. For additional cost, the urinal can be configured for rear entry of the downpipe, thus allowing the cistern and downpipe to be hidden behind panels or a stud wall. There are also options to upgrade to a stainless steel cistern, downpipe cover and trap cover to add further vandal resistance.
The urinals are supplied with combination ends suitable for either exposed or side-wall applications. Each urinal comes with a stainless steel downpipe, downpipe clips and stainless steel fixing screws. Custom lengths and L-shapes are also available, by calling 0345 202 4535 for a quote Pack Includes:
- Urinal Trough - 38mm (1.5") Centre Waste Outlet
- Plastic Cistern and Auto Siphon (upgradeable to stainless steel cistern) - Downpipe and sparge pipe - Fittings
- Fixing screws |
£465.00
(ex VAT)
Floor Standing Stainless Steel Urinal with Automatic Flushing
FSTU1200-
|
FSTU Range of floor-standing urinal troughs Projection from wall = 365mm Height = 1050mm Standard lengths = 1200mm, 1500mm, 1800mm, 2100mm, 2400mm. Bespoke lengths and designs available. This floor-standing model does not require a trench to be cut into the floor because the waste pipe is above the floor but concealed behind a full length panel. This allows for ease of installation and maintenance as the panel can be removed via Allen headed security screws. The urinal trough is manufactured to order in the UK as a one piece unit from 1.2mm thick, grade 304 stainless steel. The surface is polished to a smooth, satin, non-reflective finish.
A stainless steel box conceals the horizontal sparge pipes to discourage tampering. For additional cost, the urinal can be configured for rear entry of the downpipe, thus allowing the cistern and downpipe to be hidden behind panels or a stud wall. There are also options to upgrade to a stainless steel cistern, and to include a downpipe cover.
Pack Includes: At an additional cost, delivery will be arranged to your site via dedicated transport to reduce the risk of damage. Please contact us for a delivery cost. Depending on size, delivery is only usually available within 120 miles of Oxford U.K. |
