With the filling of water-bottles now being a major use of drinking fountains, many buyers choose to have a swan-neck bottle/cup filler fitted. However, the swan-neck is also one of our most popular spares because they can be easily damaged by a determined vandal. It is very hard indeed to damage a bubbler tap but a swan-neck can be gripped with both hands and pulled hard. If you are concerned about the possibility of such mistreatment of a drinking fountain, avoid the swan-neck option. For a more reliable bottle filling option, consider a floor standing drinking fountain with a recessed bottle filling station such as the GW-951 (adult height) or GW-952 (junior height). They are more expensive than a standard wall-hung drinking fountain fitted with a swan-neck but are a more convenient and robust solution.
HDPE Drinking Fountain - Wall Mounted - White
GW-261-S
|
• Smooth rounded design This wall mounted drinking fountain is constructed from a single-piece of moulded high grade 4mm thick polycarbonate ABS plastic. It can be installed for adult or junior height and features a smooth rounded shape, avoiding sharp corners. Depth: 322mm (projection from wall) DISPENSER OPTIONS: Drinking fountains with bubblers provide a jet of water to the user under normal mains pressure which does not need a cup or drinking vessel. NSF approved bubbler tap, heavy duty shielded chrome press button drinking water bubbler valve (tap) with easily replaceable self-contained Pro-Flo™ cartridge. Product is certified to NSF/ANSI 372. Bottle / Cup filler: self-closing push button valve fitted with a 255mm high, chrome plated, fixed brass swan-neck spout. Water only flows whilst the button is depressed. For safety reasons, glass/bottle fillers are not designed to withstand heavy impact and should only be installed in areas with supervision or low risk of vandalism. Optional but recommended is our Mains water connection kit designed for aiding the connection of drinking fountains to a mains water supply pipe. Protects the drinking fountain by preventing the maximum pressure rating being exceeded. Double check valve prevents backward flow of liquid. |
£115.00
(ex VAT)
Drinking Fountain Stainless Steel with Bottle Filler - Wall Mounted
GW-361-S
|
• Smooth rounded design This robustly made wall mounted drinking fountain is constructed from 1.5mm thick satin polished stainless steel. It can be installed for adult or junior height. For safety purposes, the unit features a smooth rounded shape, avoiding sharp corners which could cause injury to the user. This model comes with appropriate wall mounting brackets and is manufactured in one piece from grade 304 stainless steel. For ease of use, the dispenser is situated to one side, on a raised landing area. The integrated splashback provides for ease of cleaning. This stainless steel drinking fountain is suitable for outside installation but will need to be isolated and drained down during periods of freezing weather to prevent damage to the valve and pipework. Supplied with wall bracket, 32mm grated waste fitting and bottle filling swan-neck spout complete with water inlet fitting to suit 15mm diameter pipework.
Optional but recommended is our Mains water connection kit designed for aiding the connection of drinking fountains to a mains water supply pipe. Protects the drinking fountain by preventing the maximum pressure rating being exceeded. Double check valve prevents backward flow of liquid. GW-361 Product Data Sheet
GW-361 Installation Instructions |
£169.00
(ex VAT)
Drinking Fountain Stainless Steel - with Bottle Filler and Undershroud
GW-362-S
|
• Smooth rounded design This robustly made wall mounted drinking fountain is constructed from 1.5mm thick satin polished stainless steel. It can be installed for adult or junior height. For safety purposes, the unit features a smooth rounded shape, avoiding sharp corners which could cause injury to the user. This model comes with appropriate wall mounting brackets and is manufactured in one piece from grade 304 stainless steel. It features a 215mm deep under-shroud and a removable baseplate which allow the water inlet and waste connections to be concealed. The baseplate can be left unfitted if through-wall inlet and outlet connections are not possible. This stainless steel drinking fountain is suitable for outside installation but will need to be isolated and drained down during periods of freezing weather to prevent damage to the valve and pipework. Supplied with wall bracket, security screw removal key, 32mm grated waste fitting and bottle filling swan-neck spout complete with water inlet fitting to suit 15mm diameter pipework.
Depth: 360mm (projection from wall) Dispenser type: Self-closing push button valve fitted with a 255mm high, chrome plated, fixed brass swan-neck spout. Water only flows whilst the button is depressed. For safety reasons, glass/bottle fillers are not designed to withstand heavy impact and should only be installed in areas with supervision or low risk of vandalism. Optional but recommended is our Mains water connection kit designed for aiding the connection of drinking fountains to a mains water supply pipe. Protects the drinking fountain by preventing the maximum pressure rating being exceeded. Double check valve prevents backward flow of liquid.
GW-362 Product Data Sheet
GW-362 Installation Instructions
|
£195.00
(ex VAT)
Drinking Fountain - Heavy Duty Cast Iron Wall Mounted - White
DFNW-860
|
Traditional multi-purpose wall mounted drinking fountain constructed from 10mm thick cast Iron finished in a white plastic coating. It is robust, hygienic and can be wall mounted at adult or junior height. Widely used for many years in schools, parks and other public areas.
• Hygienic design - The water jet is located in a dished recess protected by a stainless steel cover plate which prevents access to the nozzle with the mouth and contamination form bird droppings etc.
½” BSP exposed water inlet connection
DFNW-860 Novus Product Data Sheet
Dimensions: Width: 203mm DFNW-860 Novus Installation and Maintenance Instructions |
£385.00
(ex VAT)
Drinking Fountain - Floor Standing Pedestal
DF-971-S-PED
|
This floor standing drinking fountain features an undershroud with lockable door to conceal pipework. The fountain is fixed to the floor at the base making it more resistant to vandalism. As standard, the back and base of the fountain is open to allow water waste pipe connections to enter from below or a wall behind. A closed back option is available so the unit can be installed as a free standing pedestal with connections made from below.
The drinking fountain is supplied with your selected dispenser type and a (1¼ in) BSP unslotted grated waste fitting. The unit is constructed from Grade 304 stainless steel of 1.2mm thickness. This stainless steel drinking fountain is suitable for outside installation but will need to be isolated and drained down during periods of freezing weather to prevent damage to the valve and pipework.
Width: 310mm
Depth: 310mm (projection from wall)
Height: Adult version 910mm - Junior version 760mm
DF-971 Product Data Sheet
Optional but recommended is our Mains water connection kit designed for aiding the connection of drinking fountains to a mains water supply pipe. Protects the drinking fountain by preventing the maximum pressure rating being exceeded. Double check valve prevents backward flow of liquid. |
£475.00
(ex VAT)

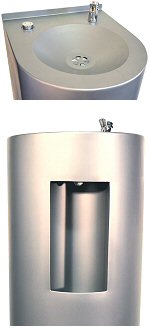

Campus Drinking Fountain with Bottle Filling Station
GW-951
|
This dual-purpose floor standing unit is made from 1.5mm thick Grade 304 stainless steel and provides drinking water from both a traditional bubbler valve and via a convenient recessed bottle filling station suitable for use with 0.5, 0.75 and 1.0 litre bottles. The unit is hygienic, robust and suitable for both indoor and, when proper precautions* are observed, outdoor use. The shielded self-closing bubbler valve is positioned for ease of use and the bottle filler is activated by a simple push button mounted on top of the unit. The whole unit features a smooth radiused design eliminating sharp corners. The drinking fountain and bottle filling station has an integral full height shroud to conceal the water supply and waste pipework. The unit is supplied pre-plumbed with a single flexible water inlet hose and is fitted with dual water traps and waste pipes terminating in one connection. Two models are available to suit both adult and junior height applications.
Optional but recommended is our Mains water connection kit designed for aiding the connection of drinking fountains to a mains water supply pipe. Protects the drinking fountain by preventing the maximum pressure rating being exceeded. Double check valve prevents backward flow of liquid.
Please refer to the 'More Product Info' Tab for information relating to fitting sizes, dimensions and outdoor installations. Options:
760mm Junior Height model is also available
GW-951 Product Data Sheet
GW-951 Installation Instructions |
