Request a Quote for a Wall Hung Corner Stainless Steel Urinal
|

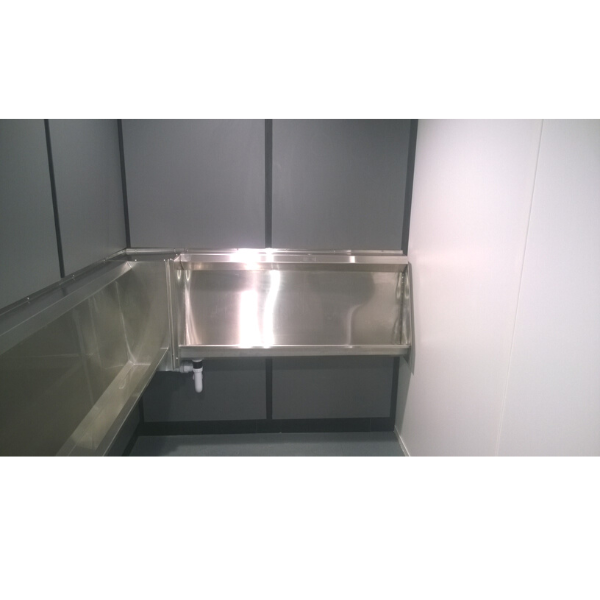

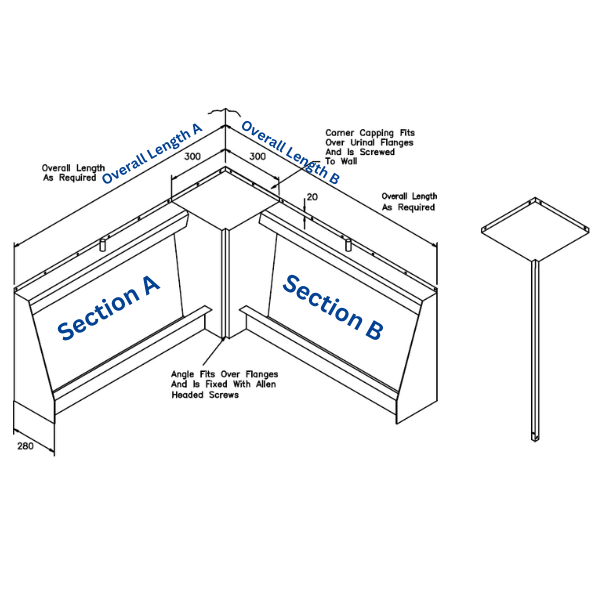

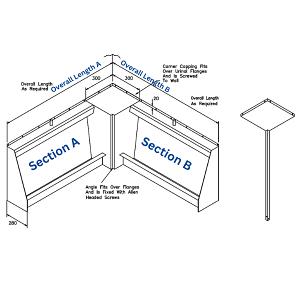

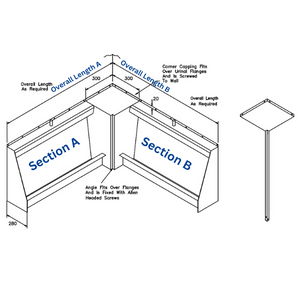

You are not purchasing the product, this is a request for a quote only. Delivery charges apply based on location. Not available to order online, please complete the required sizes and options above and include the delivery location when you check out and we'll get back to you with a quote. Wall Hung Corner Stainless Steel Urinal With Corner Capping 2x Cisterns and 2x wastes. Each section is manufactured as a separate urinal with its own waste fitting and cistern, and the only tool required is the 3mm Allen Key. The only dimensions you need provide us with are the overall widths that you require, we calculate the allowances requires for the joint cover trim or corner capping. Depending on size, delivery is only usually available within 120 miles of Oxford U.K. |
|
Waste Outlet Location
There is a choice of left, right (when facing the trough) or centre waste outlet. If the option box is not changed when placing an order, a LEFT waste version will be supplied.
Rear-Entry
If the cistern is to be concealed behind panels or a wall, the water connection to the urinal can be specified to enter from the rear of the trough. If "rear-entry" is not specified, a top-entry version of the urinal will be supplied for use with a cistern fixed directly above, not behind, the urinal.
Upgrade to Stainless Steel Cistern
More than 95% of urinal trough buyers choose the plastic cistern supplied as standard. However,
 Dimensions are : height = 322mm, width = 484mm, projection from wall = 165mm (max)
Downpipe Cover
 For additional vandal resistance, a stainless steel downpipe cover can be provided to protect the supply pipe from the cistern to the urinal. This can only be used with a stainless steel cistern (see option above).
Trap Cover
 To protect the trap and waste pipe, a stainless steel trap cover can be supplied.
|
|
Depending on size delivery will be arranged to your site via dedicated transport to reduce the risk of damage. |
