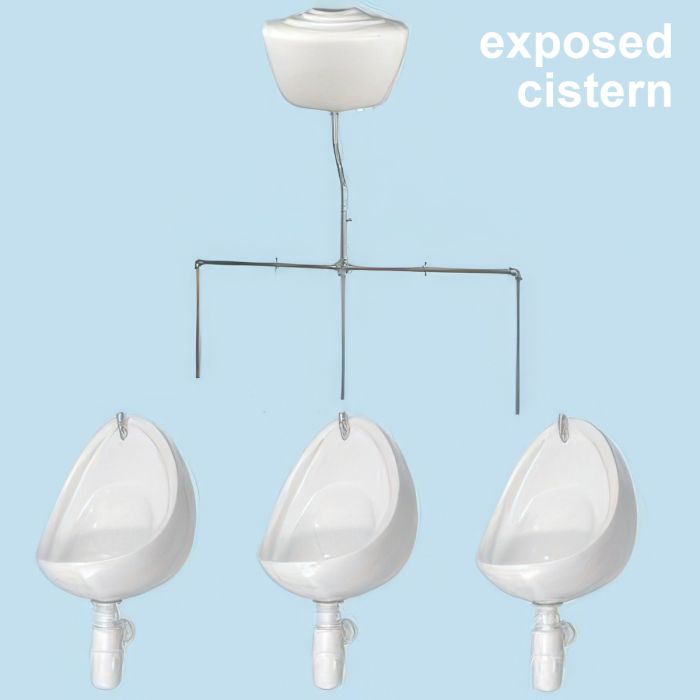

3 Urinal Set - Coronus 500: Exposed Trap, Flushpipes & China Cistern

Category: Home
Views: 21757
Price (Inc VAT)

£416.40

Our Price (Ex VAT)

£347.00

Delivery Time 2 to 3 working days (Pallet Delivery)
Ref 3GW50EXP1
Flush Controller: Comply with water regulations and save water

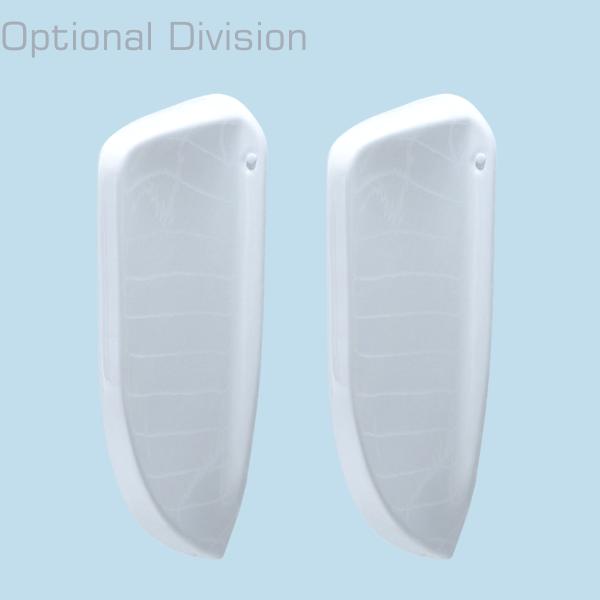

Division (ceramic privacy screen)
Trap Options
Quantity

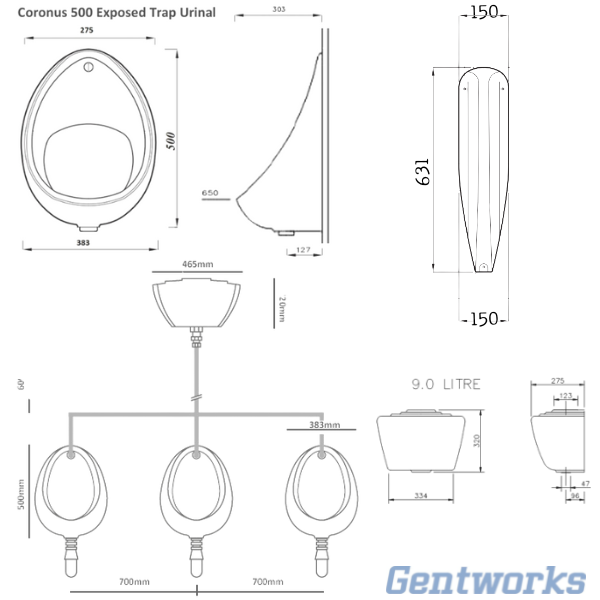

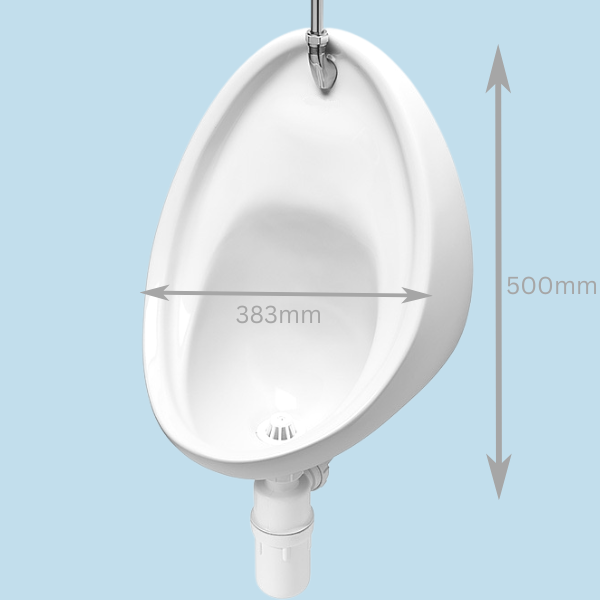

Bowl Dimensions:  Height = 500mm  Width = 383mm  Projection from wall = 303mm

•     Standard spreader flushing urinals
•     Shallow open bowl design
•     Water guide channels for efficient flushing
•     Large 500mm Height by 383mm Width
•     Similar in design to more expensive brands

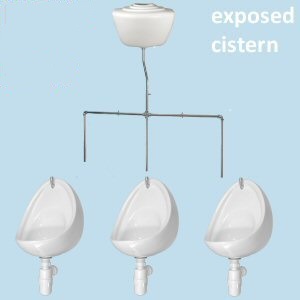

Pack Type: For exposed installation, with the cistern mounted on the same side of the wall above the urinal. Includes everything required from the cistern down to the waste traps.

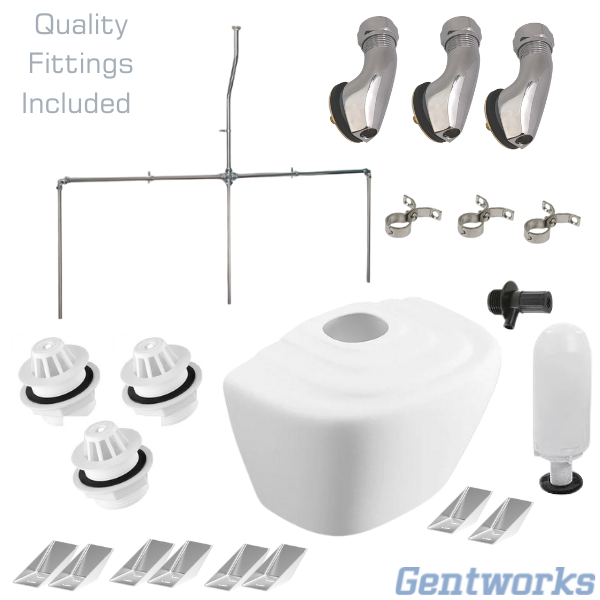

Pack includes:

- 3 x Coronus 500 Urinals

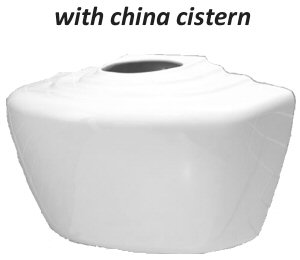

- 1 x 9 litre China Auto Cistern c/w Hangers, Syphon & Petcock
- 1 x Exposed Stainless Steel Sparge Pipe Set with pipe clips (for 3 urinals)
- 3 x Top Entry Flushing Spreaders
- 3 x Pair of  Urinal Wall Hangers
- 3 x Domed 32mm Waste Outlets - White

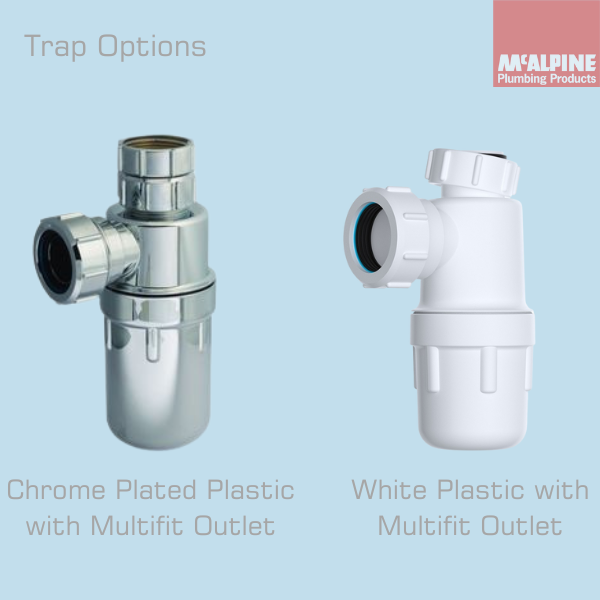

Optional Traps:
- McAlpine C10 White Plastic Bottle Trap
- McAlpine C10AR Chrome Plastic Bottle Trap

THIS PRODUCT IS USUALLY DELIVERED IN 2-3 WORKING DAYS VIA OUR STANDARD PALLET SERVICE
Please check pallet service delivery restrictions in the "About Delivery" tab before ordering.

 Product Data Sheet Coronus 500mm Exposed Trap Urinal


Standard Pallet Service: Urinal sets are delivered on a standard pallet service between 8am and 5pm to UK mainland only. Please note that a recipient’s signature is required, therefore someone needs to be on site to receive and check the goods. Our deliveries are made by driver only vehicles, as such the pallet will be delivered to curb side only and they will not be able to carry the goods into your property. Any failed deliveries due to the customer not being able to take delivery may be charged to the customer at our standard rate.

Contact at Site: Please ensure you provide the correct mobile number for delivery so the pallet carrier can make contact, if necessary.

Delivery Access: Delivery vehicle can be up to 28 tons therefore it is important that the site is accessible by such vehicles.

Deliveries to some construction sites or an address not listed on the Royal Mail PAF File may not be possible.

UK mainland only - excludes Highlands and some Scottish postcodes.

*
*
*
*
