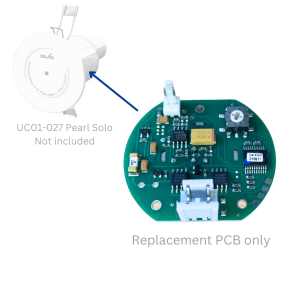

KWC DVS Replacement PCB only for UC01-027 Pearl Solo.

If the PCB has failed, it is now available as a replacement part.

The PCB does not come with the outer white plastic casing, which must be removed and replaced as follows: First, apply gentle pressure to the side clip from within the unit to release the PCB. At the same time, use a small flat-head screwdriver (or a similar tool) to lift the PCB past the clip. Repeat this process on both sides, and the PCB should be easily removable. Alternatively, you can press both side clips simultaneously and invert the unit, allowing the PCB to fall out with minimal effort.

To install a new PCB, align the white locating pins on the PCB with the corresponding slots and carefully press down. Only a small amount of pressure is needed, and you should hear a click when the PCB is securely in place.
