GW6 Tabernas Waterless Urinal Trough

Category: Home
Views: 13348
Price (Inc VAT)

£558.00

Our Price (Ex VAT)

£465.00

Delivery Time 2-3 Working Days (Pallet Delivery)
Ref GW6TABERNAS12-L
Length
Waste Outlet Location
Waste cover
Quantity

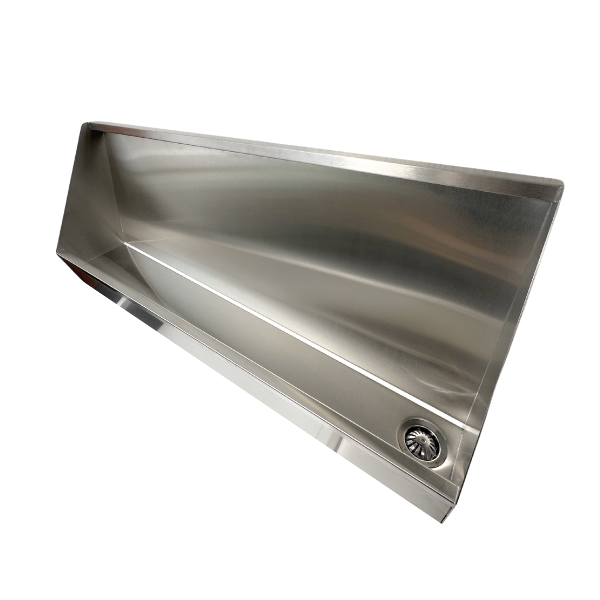

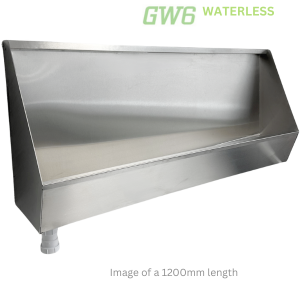

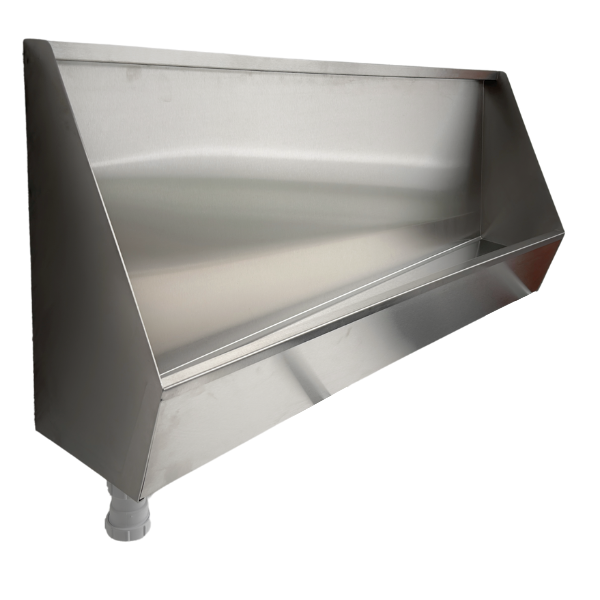

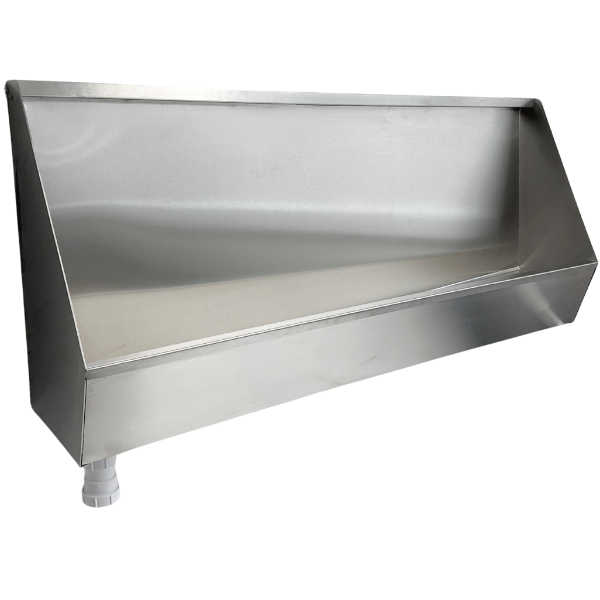

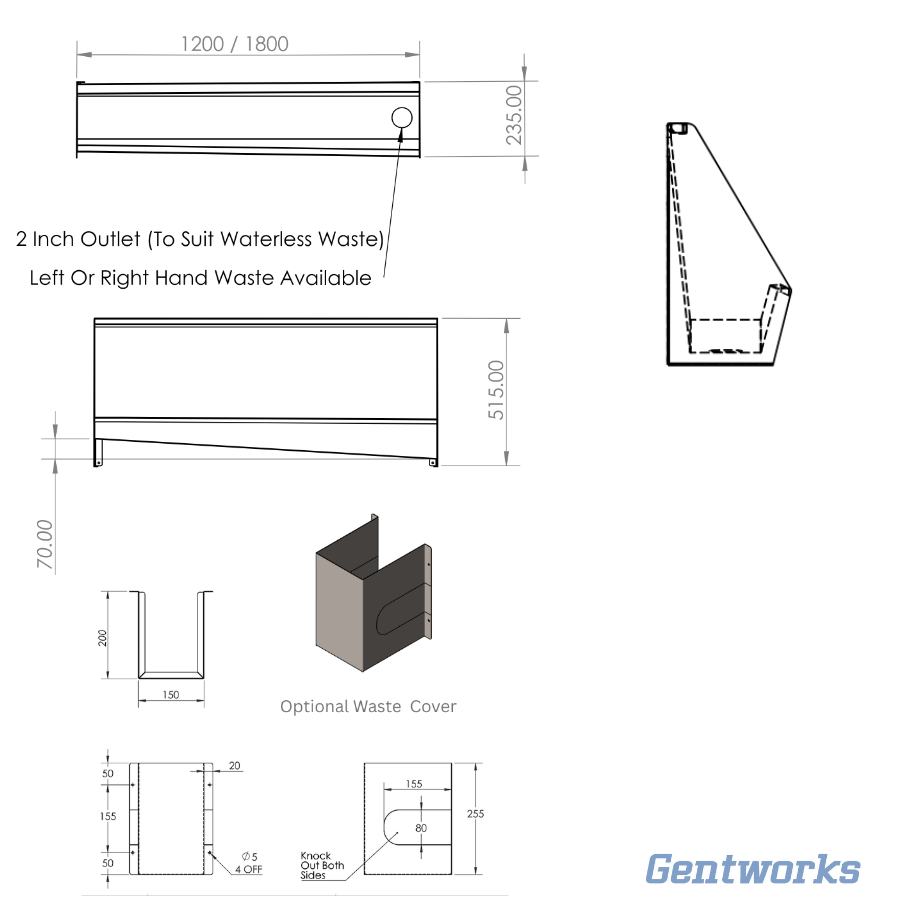

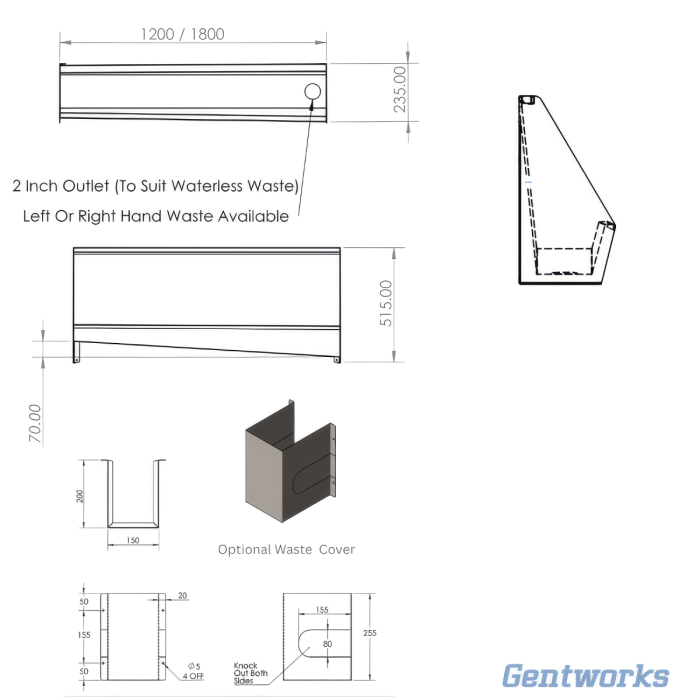

New for 2025 – GW6 Tabernas Stainless Steel Waterless Urinal Trough

Ideal for commercial and public washrooms, this waterless trough increases user capacity while eliminating water usage.

Fitted with the GW6 dual-valve waterless waste, it delivers reliable odour control and low-maintenance operation, with a 4-6 months replaceable core. Waste fittings are included for both vertical and horizontal pipe installations. Add the optional waste outlet cover for enhanced vandal resistance.

Key Benefits / Features:

  • Unique dual valve technology for added protection against odours
  • Small, replaceable GW6 waterless valve core
  • No special tools required for maintenance
  • 100% waterless design with no flushing sparge and a steep fall to waste for rapid drainage.
  • Supplied with 40mm waste connections. For best practice in new installations, connect to 50mm waste pipes.

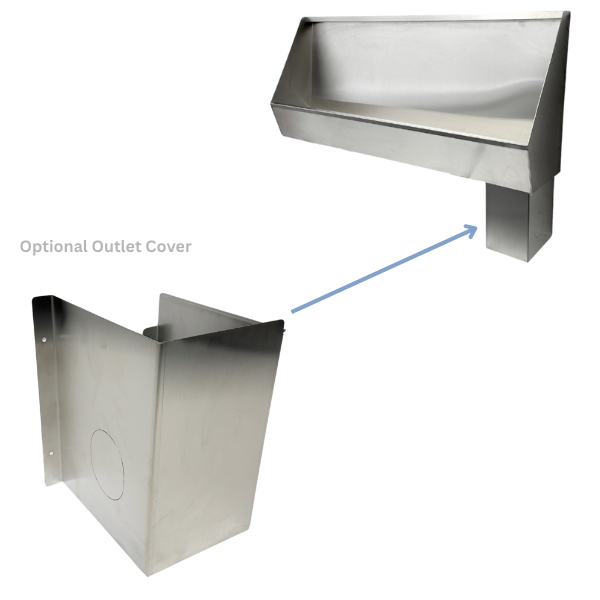

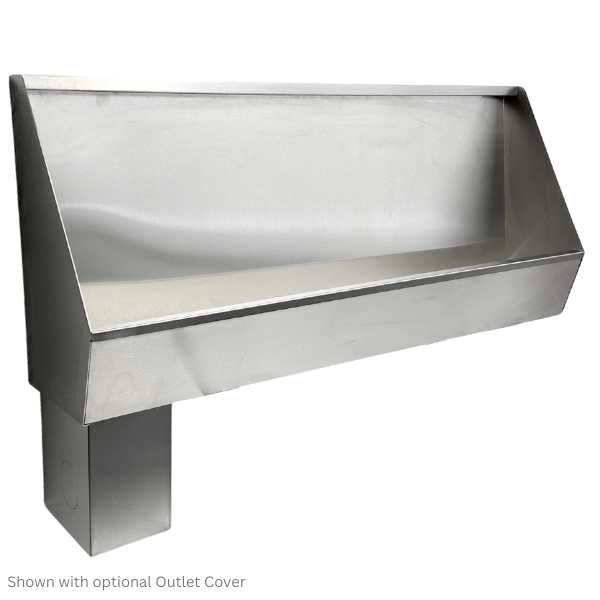

  • Optional waste cover with side knockouts and open bottom for versatile outlet configurations.
  • Waste pipe connection can be horizontal (e.g. through panel) or vertical
The GW6 valve core cartridge uses a silicone double-skirt valve which is tolerant of both water and common cleaning chemicals. Click here for more about the GW6.


Cleaning
The GW6 waterless urinal system is tolerant of standard cleaning chemicals but care should be taken with stainless steel products. Only mild products should be used. For best results, we recommend Bactericidal Cleaner for stainless steel urinals. The surface of the urinal needs to be wiped down regularly to maintain cleanliness.

Includes:
- GW6 Tabernas waterless urinal trough

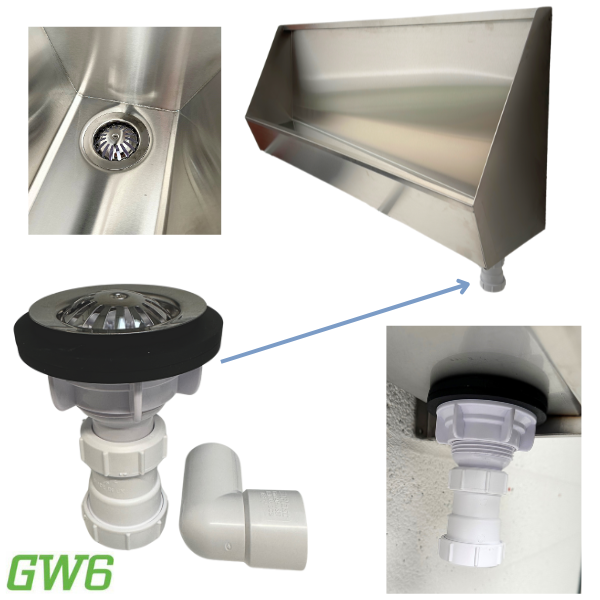

- GW6 housing with valve, backnut and 2x back washers
- ST28M Compression Waste Fitting and WS27 Solvent Weld Waste Bend

Delivery Method: Depending on size and quantity, 1200mm units are typically sent via APC parcel carrier, while multiple units or the 1800mm version are delivered by standard pallet service. Please note that a recipient’s signature is required, therefore someone needs to be on site to receive and check the goods. Our deliveries are made by driver only vehicles, as such the pallet will be delivered to curb side only and they will not be able to carry the goods into your property. Any failed deliveries due to the customer not being able to take delivery may be charged to the customer at our standard rate.

Contact at Site: Please ensure you provide the correct mobile number for delivery so the pallet carrier can make contact, if necessary.

Delivery Access: Delivery vehicle can be up to 28 tons therefore it is important that the site is accessible by such vehicles.

UK mainland only - excludes Highlands and some Scottish postcodes.

Sluicing and cleaning a GW6 waterless urinal


Changing a valve core cartridge in a GW6 urinal


*
*
*
*
