Stainless Steel Wash Trough - 4 Lengths Available From Stock

Category: Wash Troughs
Views: 27276
Price (Inc VAT)

£394.80

Our Price (Ex VAT)

£329.00

Delivery Time 1-3 working days
Ref GW-WDT12A-C-28S2
Length / Type
Tap Holes
Include taps

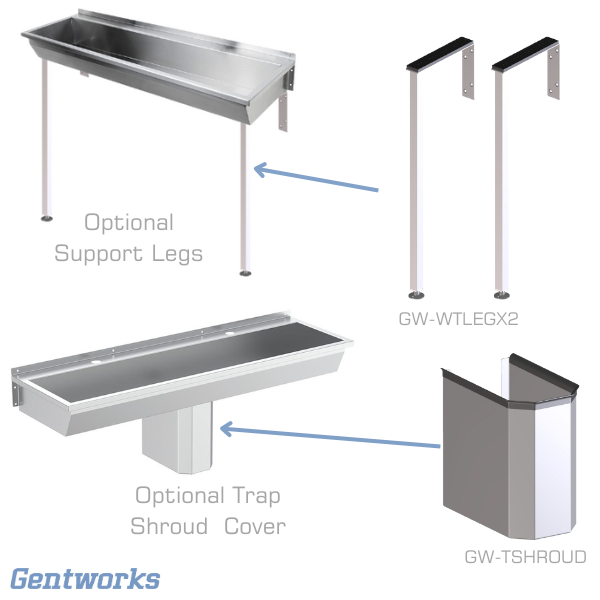

Optional Support Legs
Optional Trap Shroud
Quantity

New Range of Stocked High-Quality Wash Troughs.

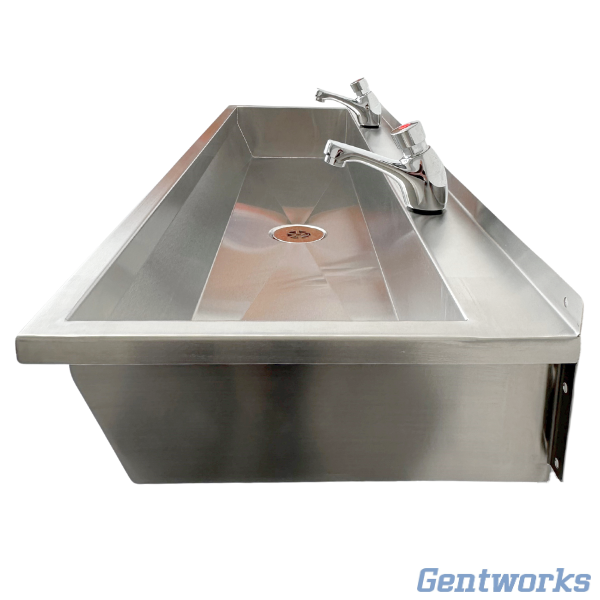

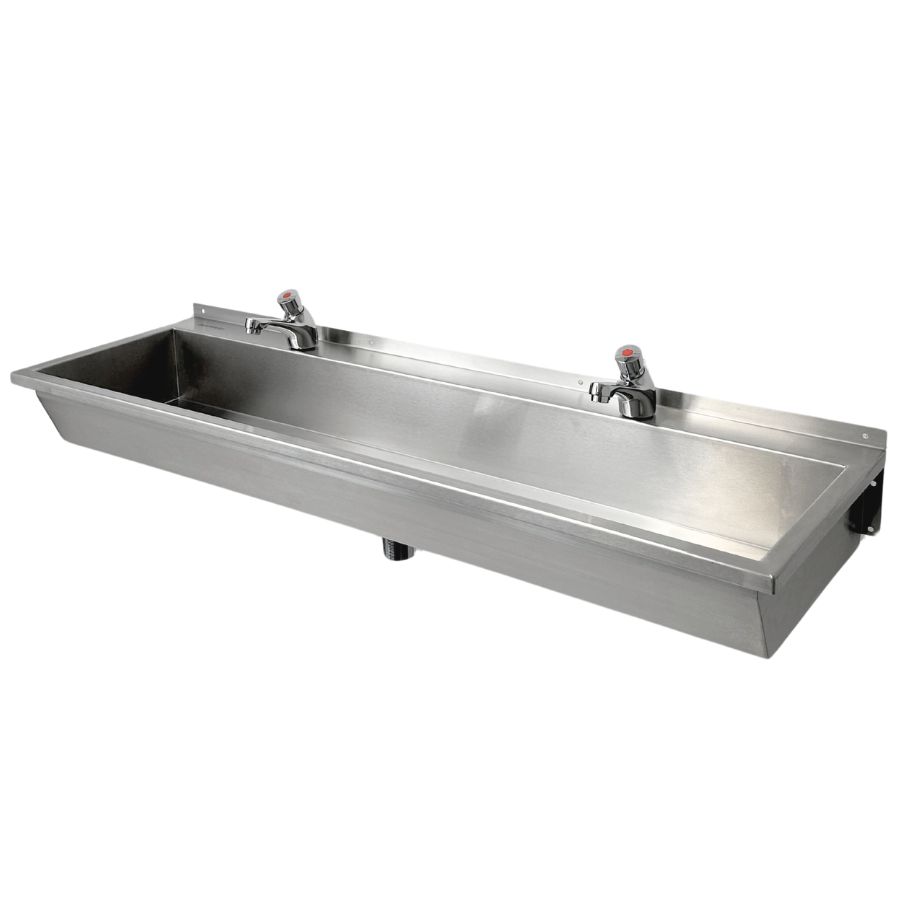

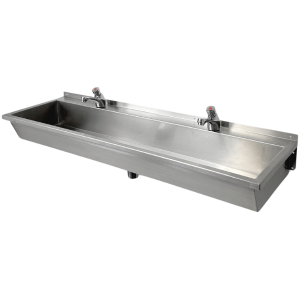

Improve handwashing capacity swiftly and cost-effectively with our wall-hung stainless steel wash trough.

These wash troughs are made from 1.2mm thick, 304 stainless steel with a satin finish, featuring pre-drilled 28mm single tap holes for single inlet feed taps and most water-saving non-concussive push taps. Not suitable for pairs of taps or monobloc mixer taps with twin feed inlets; for those, please explore our made-to-order range.



• Quick delivery - ready stock available
• Pre-drilled single 28mm tap holes for single feed inlet taps
• Available in four lengths

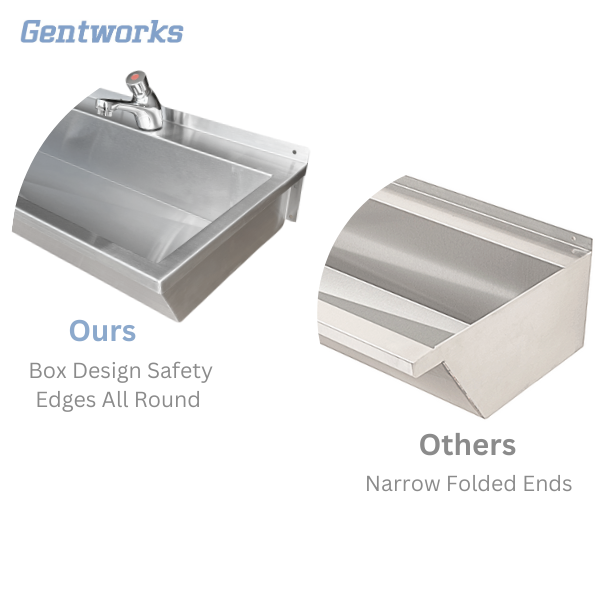

• Safety edges all round
• Tap ledge
• Optional front support legs
• Fully welded construction
• Integral wall fixing brackets
• Anti-splash design
• Central 1.5” BSP waste, 2400mm version has a handed waste

Dimension:
Projection from wall = 370mm
Height = 155mm
Internal Trough Depth = 130mm max.

A 25mm upstand to the rear allows taps to be mounted on an easy to clean surface. Front legs with bearer brackets are available if additional support is required.

Tap holes and waste outlet configurations:
Our most popular tap setup for stainless steel wash troughs is a single non-concussive (self-closing) tap per user, connected to either cold water or, when hot water is available, a thermostatic mixing valve (TMV) to achieve the optimal hand washing temperature of approximately 43 degrees Celsius. These wash troughs, with pre-cut single 28mm tap holes, ensure a secure fit for single feed taps, minimising the risk of movement or twisting.

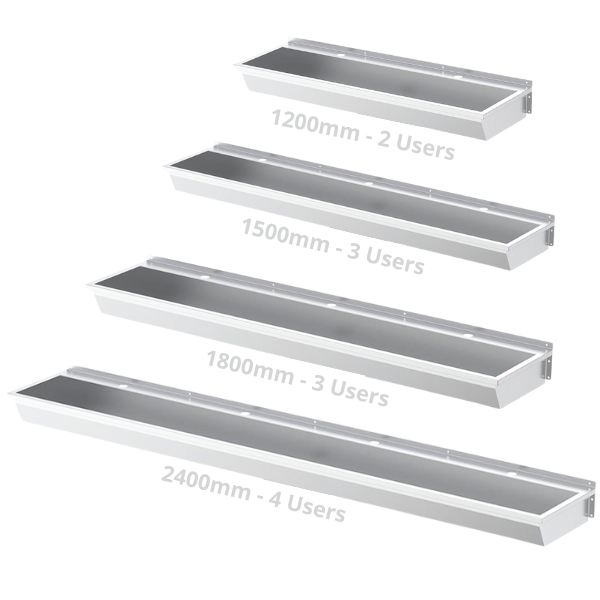

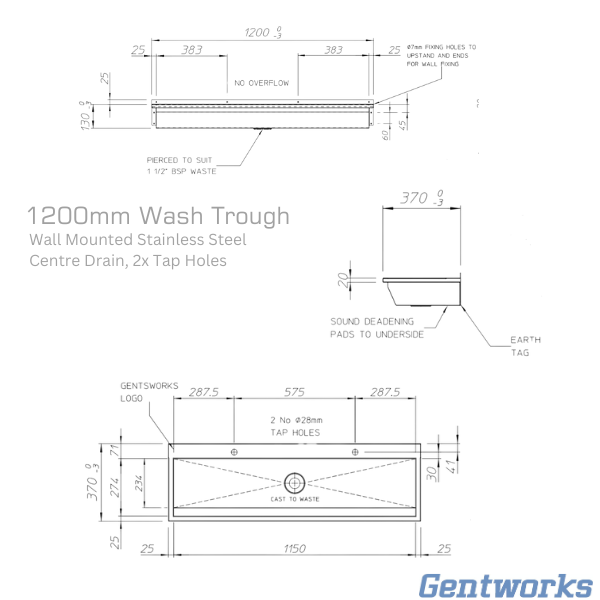

- 1200mm Wash Trough – 2 tap-holes with centre waste

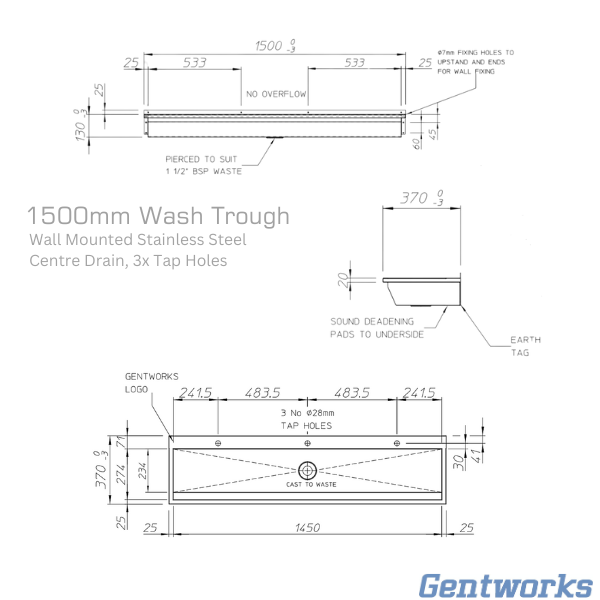

- 1500mm Wash Trough – 3 tap-holes with centre waste

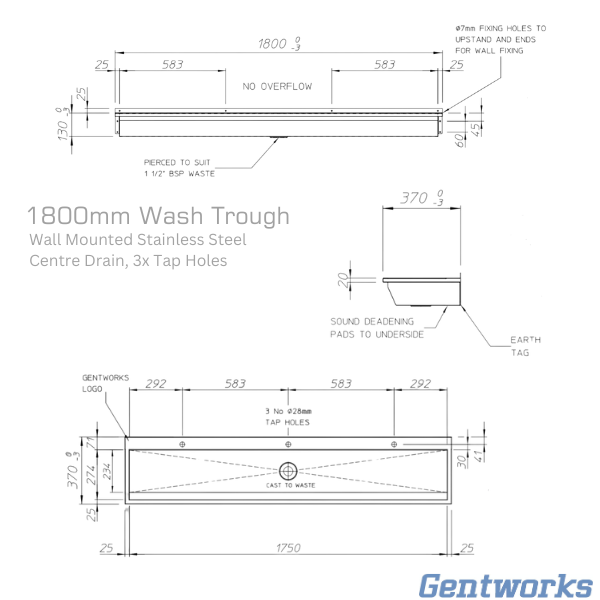

- 1800mm Wash Trough – 3 tap-holes with centre waste

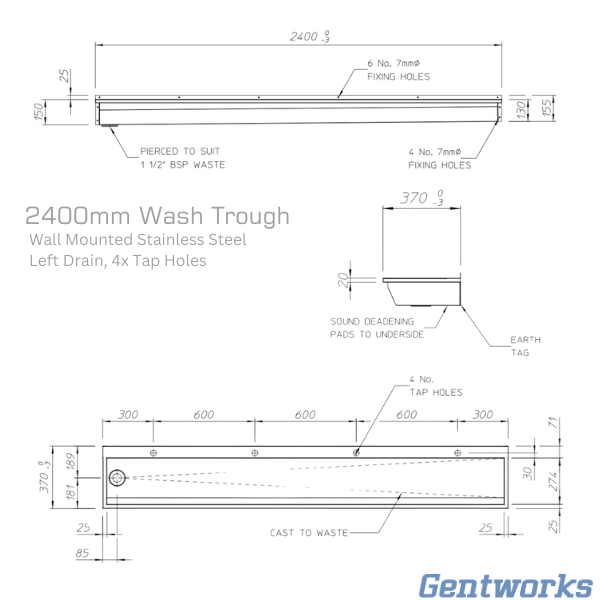

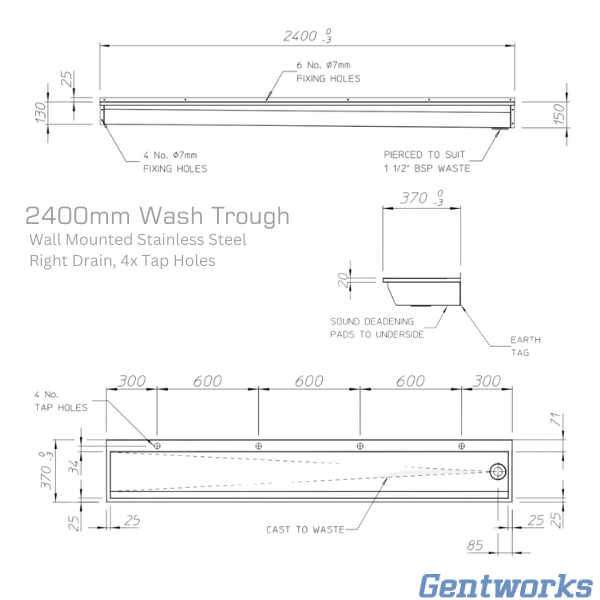

- 2400mm Wash Trough – 4 tap-holes with option of left or right hand waste

For custom lengths and other tap hole or waste outlet position configurations, please email your requirements to sales@gentworks.co.uk, including the approximate delivery location. We will provide a quote and current lead time.


Pack Includes:

- Wash Trough with 28mm Tap Holes
- 38mm (1.5") BSP Unslotted Solid Chrome Waste Outlet fitting

These wash Troughs are delivered by DX Freight parcel carriers between 8am and 5.30pm Monday - Friday, UK mainland only. Please note that a recipient’s signature is required, therefore someone needs to be on site to receive and check the goods. Our deliveries are made by driver only vehicles, they will not be able to carry the goods into your property. Any failed deliveries due to the customer not being able to take delivery may be charged to the customer at our standard rate.

You will be emailed a delivery DATE shortly after your order has been processed. We can’t currently offer timed deliveries or call ahead requests.

Contact at Site: Please ensure you provide the correct mobile number for delivery so the carrier can make contact, if necessary.

Delivery Access: Delivery vehicle can be up to 18 tons therefore it is important that the site is accessible by such vehicles.

UK mainland only - excludes Highlands and some Scottish postcodes.

*
*
*
*
