New Range of Stocked High-Quality Wash Troughs.

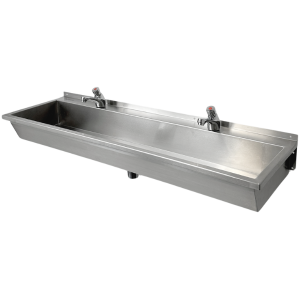

Improve handwashing capacity swiftly and cost-effectively with our wall-hung stainless steel wash trough.

The 2400mm LEFT-drain version is currently out of stock; we're awaiting a confirmed delivery date from the factory.

These wash troughs are made from 1.2mm thick, 304 stainless steel with a satin finish, featuring pre-drilled 28mm single tap holes for single inlet feed taps and most water-saving non-concussive push taps. Not suitable for pairs of taps or monobloc mixer taps with twin feed inlets; for those, please explore our made-to-order range.

• Quick delivery - ready stock available
• Pre-drilled single 28mm tap holes for single feed inlet taps
• Available in four lengths
• Safety edges all round
• Tap ledge
• Optional front support legs
• Fully welded construction
• Integral wall fixing brackets
• Anti-splash design
• Central 1.5” BSP waste, 2400mm version has a handed waste

Dimension:
Projection from wall = 370mm
Height = 155mm
Internal Trough Depth = 130mm max.

A 25mm upstand to the rear allows taps to be mounted on an easy to clean surface. Front legs with bearer brackets are available if additional support is required.

Tap holes and waste outlet configurations:
Our most popular tap setup for stainless steel wash troughs is a single non-concussive (self-closing) tap per user, connected to either cold water or, when hot water is available, a thermostatic mixing valve (TMV) to achieve the optimal hand washing temperature of approximately 43 degrees Celsius. These wash troughs, with pre-cut single 28mm tap holes, ensure a secure fit for single feed taps, minimising the risk of movement or twisting.
- 1200mm Wash Trough – 2 tap-holes with centre waste
- 1500mm Wash Trough – 3 tap-holes with centre waste
- 1800mm Wash Trough – 3 tap-holes with centre waste
- 2400mm Wash Trough – 4 tap-holes with option of left or right hand waste

For custom lengths and other tap hole or waste outlet position configurations, please email your requirements to sales@gentworks.co.uk, including the approximate delivery location. We will provide a quote and current lead time.

Pack Includes:
- Wash Trough with 28mm Tap Holes
- 38mm (1.5") BSP Unslotted Solid Chrome Waste Outlet fitting
