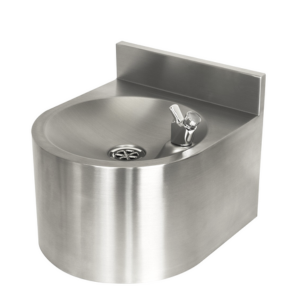

This robust wall-mounted drinking fountain is constructed from 1.5mm thick satin-polished stainless steel. Its versatile design allows for installation at either adult or junior height. Prioritising safety, the unit features a smooth, rounded design, eradicating any sharp corners that might pose a risk to users. Furthermore, it comes equipped with a deep under-shroud and a removable baseplate, offering the flexibility to conceal water inlet and waste pipe connections. If through-wall inlet and outlet connections aren't feasible, you have the option to leave the baseplate unfitted.

• Smooth rounded design
• 1.5mm thick grade 304 satin stainless steel
• WRAS approved bubbler (tap) supplied as standard
• Under-shroud provides protection for water connections
• Integral splashback
• Side positioned bubbler for optimum flow trajectory
• Suitable for indoor or outdoor installation
• Ideal for schools and public amenities

For ease of use, the bubbler valve is situated to one side, on a raised landing area and features a shielded outlet nozzle. The integrated splashback provides for ease of cleaning.

This stainless steel drinking fountain is suitable for outside installation but will need to be isolated and drained down during periods of freezing weather to prevent damage to the valve and pipework.

Pack Includes:
• Wall bracket
• Security screw removal key
• 32mm grated waste fitting
• Chosen dispenser
• Inlet fitting for 15mm diameter pipework

Depth: 360mm (projection from wall)
Height: 290mm (including 75mm high rear upturn but excluding bubbler)
Recommended mounting heights: Top of front Apron to finished floor; Junior 762mm, Adult 915mm

Drinking fountains with bubblers provide a jet of water to the user under normal mains pressure which does not need a cup or drinking vessel.

WRAS approved bubbler tap, supplied as standard with the drinking fountain a chrome press button drinking water bubbler valve (tap) approved product in accordance with UK water regulations.

NSF approved bubbler tap, heavy duty shielded chrome press button drinking water bubbler valve (tap) with easily replaceable self-contained Pro-Flo™ cartridge. Product is certified to NSF/ANSI 372. If you require this option please select the dispenser type above.

Bottle / Cup filler: self-closing push button valve fitted with a 255mm high, chrome plated, fixed brass swan-neck spout. Water only flows whilst the button is depressed. For safety reasons, glass/bottle fillers are not designed to withstand heavy impact and should only be installed in areas with supervision or low risk of vandalism. If you require this option please select the dispenser type above.

Optional but recommended is our Mains water connection kit designed for aiding the connection of drinking fountains to a mains water supply pipe. Protects the drinking fountain by preventing the maximum pressure rating being exceeded. Double check valve prevents backward flow of liquid.

 GW-362 Product Data Sheet

 GW-362 Installation Instructions
