KWC DVS Aquarius Wall Mounted Automatic Tap

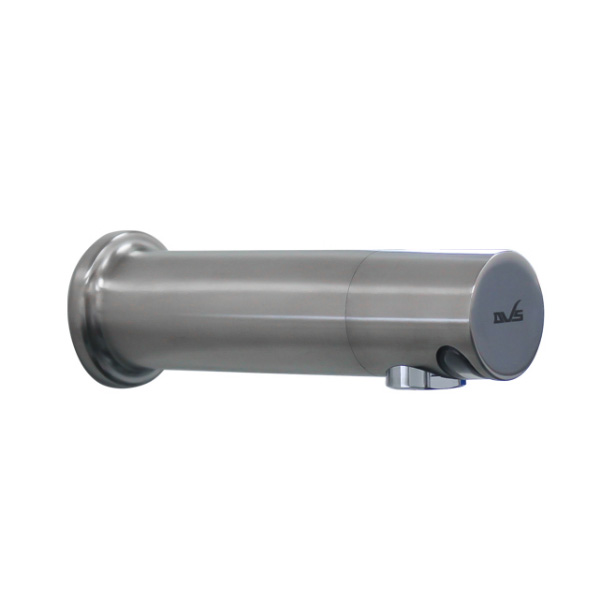

Aquarius Wall-Mounted Automatic Sensor Taps - 150mm and 200mm

With its modern and simple design, the Aquarius Wall Mounted tap ensures the ultimate in hygiene for the most discerning of clients. It is manufactured from stainless steel with a solid 38mm stainless steel ingot for the head assembly. Standard finish for this tap is brushed, but polished is available as an extra. This tap is available in two lengths; 150mm and 200mm.

The integrated sensor comes pre-set, and additional settings can be programmed on site using the hand-held programmer (sold separately), these settings include increased run-on times, and anti-vandal lock out functions.

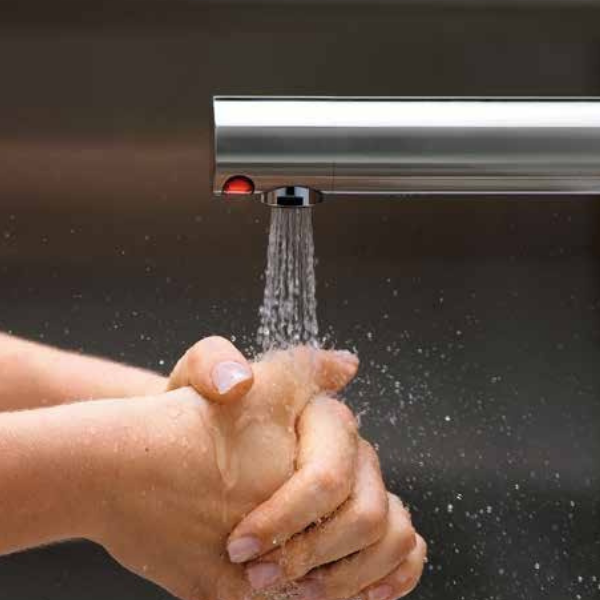

These taps have the IR sensor located at the end of the tap pointing downward to reduce the risk of false activations caused by reflective materials such as hi-vis jackets.

Water Pressure: The standard solenoid valve supplied has a pressure rating range of 1.0 Bar to 6.0 Bar, and a minimum flow rate 5 L/min per tap.

Electrical Requirements: Each kit requires a 3-amp protected fused spur.

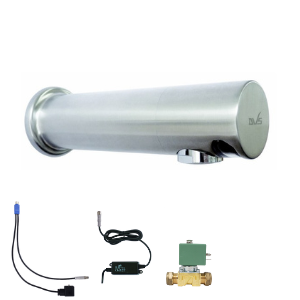

Pack Includes:

- Tap(s)
- Solenoid valve(s)
- Battery or power supply unit (PSU)
- Connector(s) for battery or PSU
- Flex hose(s)

Options:

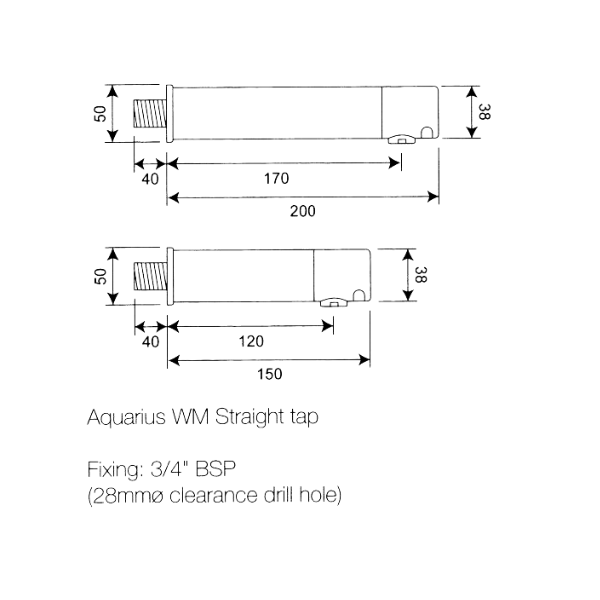

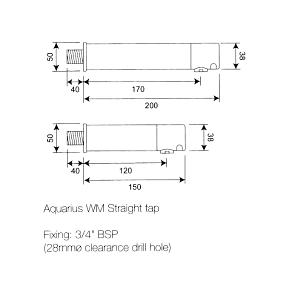

- Length: 150mm or 200mm
- One, two or three stations
- TMV3 thermostatic mixer valve
- Isolation valve and Y-strainer

Click PDF icon to view instruction manual.
