Flow Saver PIR Urinal Flush Controller Kit

Battery Powered PIR Sensor Flow Control kit for urinal cisterns, everything you need in one box.

Maintains hygiene standards whilst conserving water and dramatically cutting water costs – saving up to 95% of water usage compared with an uncontrolled cistern, and around 30-40% against more basic water management systems.

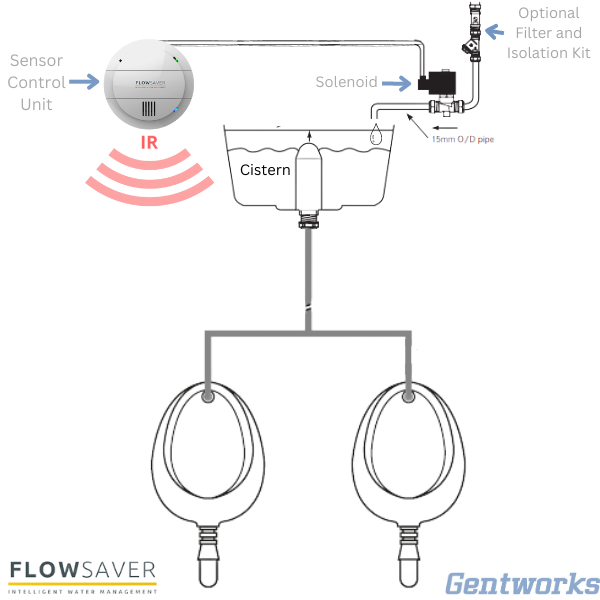

The Flow Saver consists of an electronic control sensor unit and a solenoid for installation into the water supply pipe of a urinal auto cistern. The unit monitors washroom traffic to schedule cistern flushes. Where no motion is detected a hygiene flush is initiated at 12 hour intervals. During high usage periods where the number of detections exceeds 20, the unit will temporally switch from 30 or 60 minute flushing to 15 minute flushing for improved hygiene.

Features:
•    Anti-Vandal Polycarbonate Domed Housing
•    Test Cycle Function
•    Easy Setup with LED Status Indicator and Beeper
•    Battery Powered
•    Low Battery Warning Light
•    Tamper Proof Cover With Key
•    Wall or Ceiling Mounted

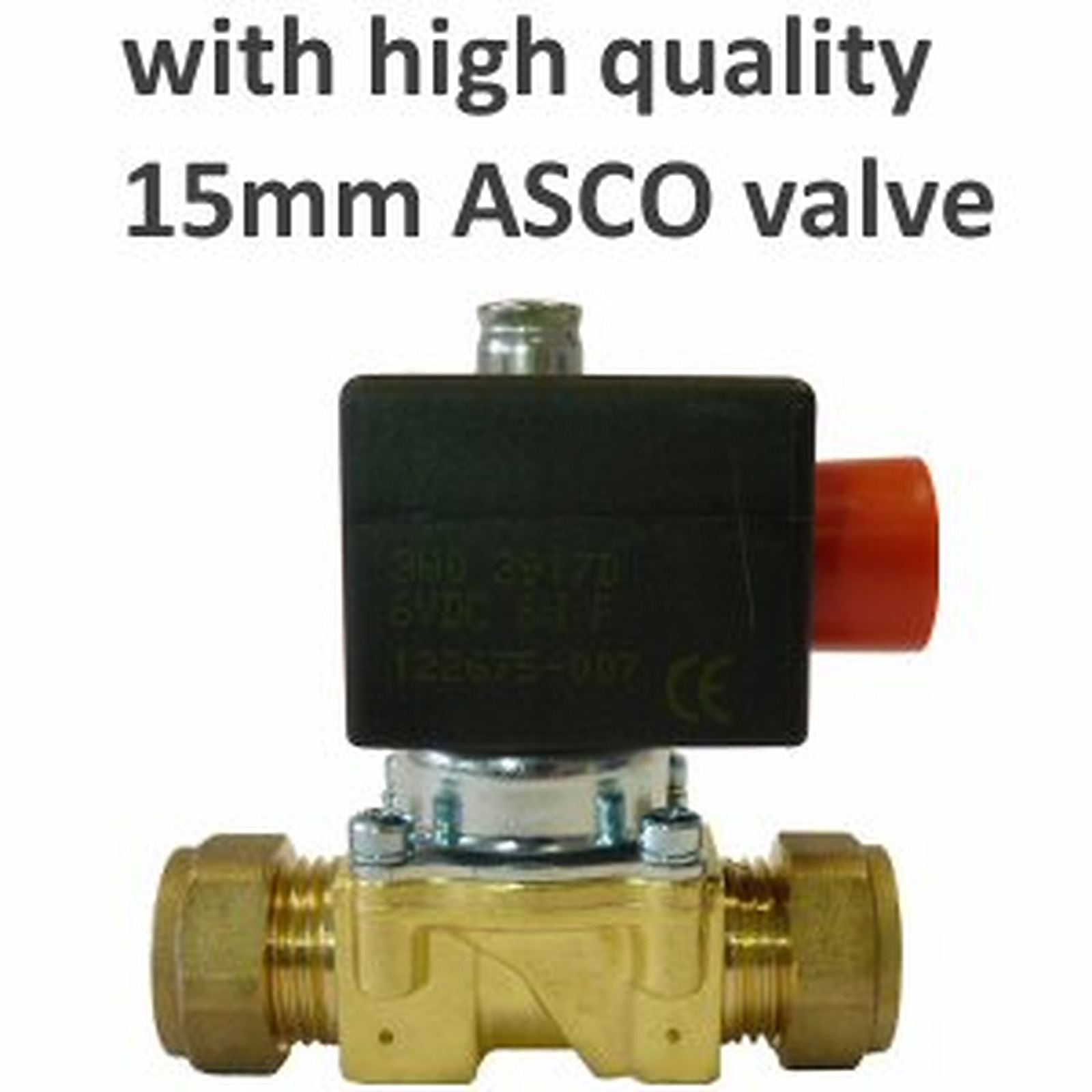

•    High Quality WRAS Approved ASCO Latching Solenoid Valve

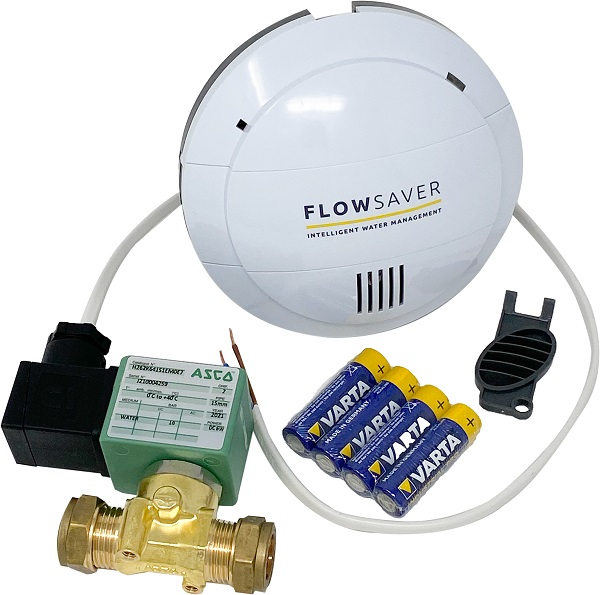

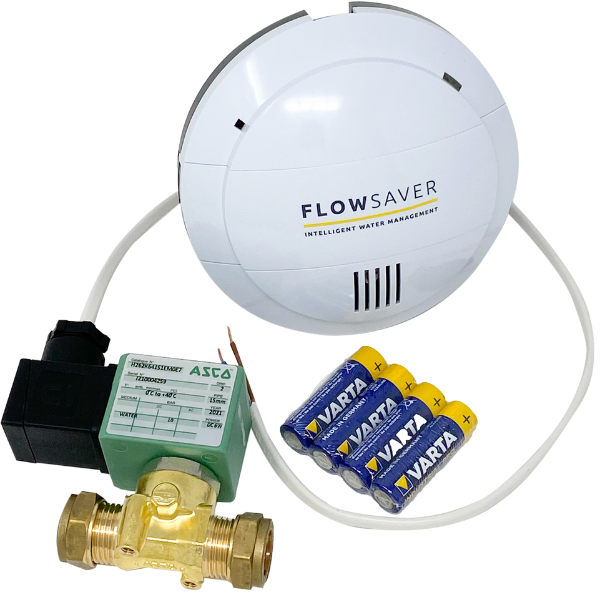

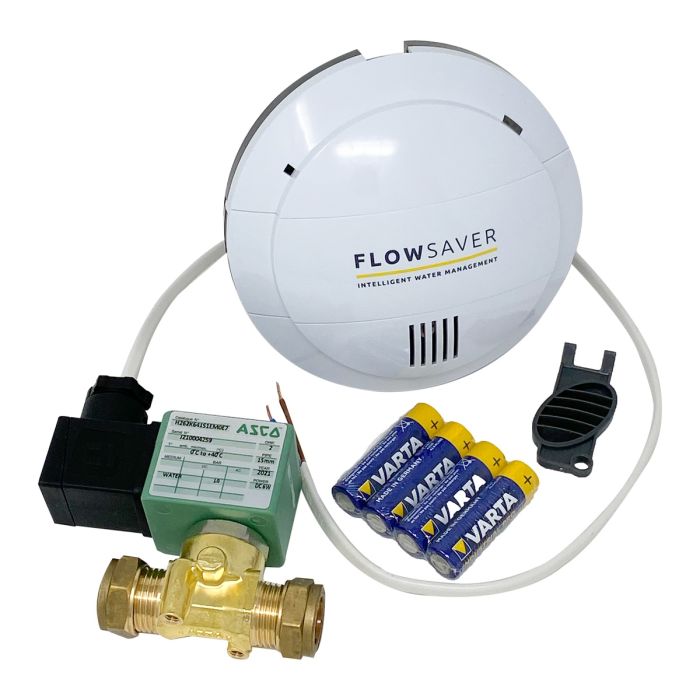

Kit Includes:
- Flush controller unit with sensor eye for wall or ceiling mount above the urinals
- Asco solenoid valve for fitting to water supply (15mm compression fit)
- Approx. 1m of  two core cable to connect controller to solenoid
- Cover release key
- Fixing plugs and screws
- 4 x AA  LR6 Alkaline Batteries

Specification:
Construction: ABS/PC
Sensor range: 3 metres
Motion sensor: Passive Infra-Red (PIR)
Water control: Asco DC latching 2.0mm orifice solenoid valve
Water Pressure: 0.5 - 7.0 BAR
Power: 4 x AA Battery cells (LR6)
Typical Battery Life: Alkaline batteries (supplied) 12-18 months, Lithium batteries (not supplied) 2-3 years
Dimensions: 130 x 130 x 45mm

Click on the Product Data Sheets tab for downloadable instructions and data sheets.
