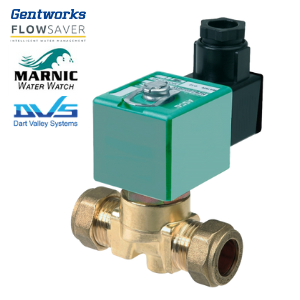

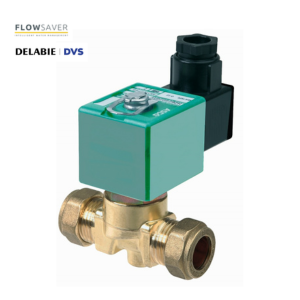

Replacement Urinal Flush Controller Solenoid

Replacement premium ASCO Solenoid valve for fitting to water supply (15mm compression fit) as supplied with Gentworks Flow Saver and some Dart Valley Systems models. Suitable as an alternative for the Marnic Water Watch Urinal Controllers.

Over a number of years lime scale can cause valves to seize and fail. If your urinal control box is still working then a replacement valve is a cost-effective way to get it functioning again.

6V DC Latching valve with brass body
2mm Orifice with compression fittings for 15mm pipe

TECHNICAL DATA
Voltage: 6V DC
Power: 6W
Max. Working Pressure: 12 bar : Static
Min Working Pressure: 1 bar
Connection 15mm Compression fitting
Orifice Size: 2mm (for standard pressure)
Pressure rating: 10 Bar
Operation type: Latching
Electrical connection: Supplied spade connector kit
