Single Bowl Concealed Trap Stainless Steel Urinal

The Back Inlet version is currently out of stock and will not be available for order until October.

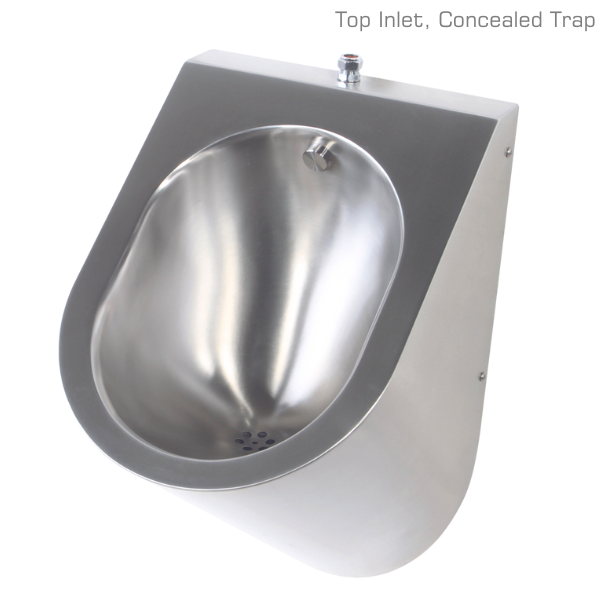

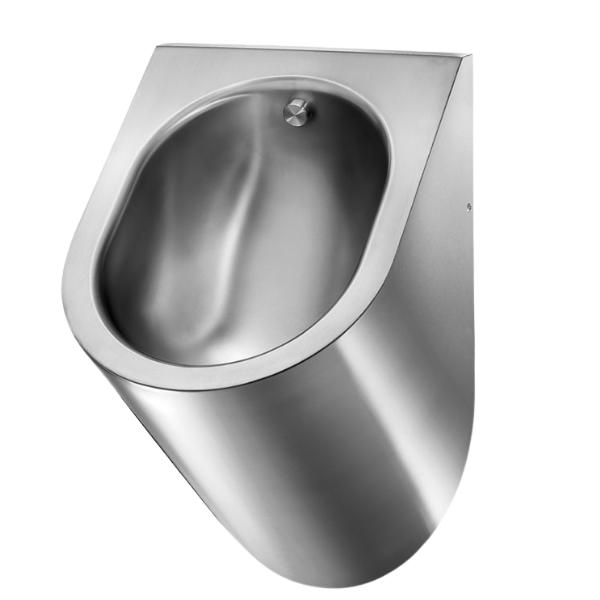

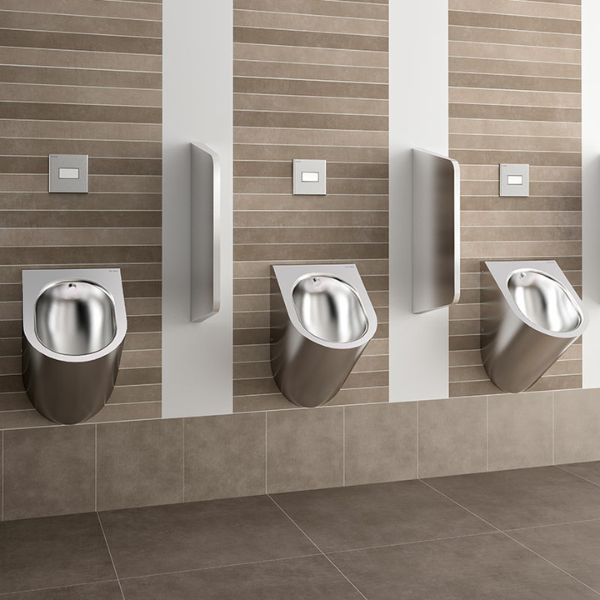

A wall-mounted stainless steel bowl urinal with a compact, anti-vandal design, ideal for concealed pipework or IPS panel installation. Made from 1.2mm thick, bacteriostatic 304 stainless steel, with a satin finish. Up to four urinals can be installed in a range and flushed using a single automatic cistern, with options for a back water inlet with a concealed cistern or a top water inlet with an exposed cistern. For a direct flush setup, select the back inlet, urinal-only option and choose from our direct flush sensors in the related products section below. Also compatible with some in-wall frame systems on the market. Note: Waste pipes must terminate horizontally behind the urinal, NOT suitable for vertical, surface-mounted waste pipes.

Supplied with a 1½” P trap, waste fitting, and flexible stainless steel hose connection, with options for cistern and sparge pipes for installations of up to four urinals.
CE marked. Complies with European standard EN 13407 for 2L flush.

Note: Concealed installations should include a service duct behind the urinal(s) to accommodate pipework. Additionally, incorporating access panels into the installation is advisable for easy maintenance and adjustments.

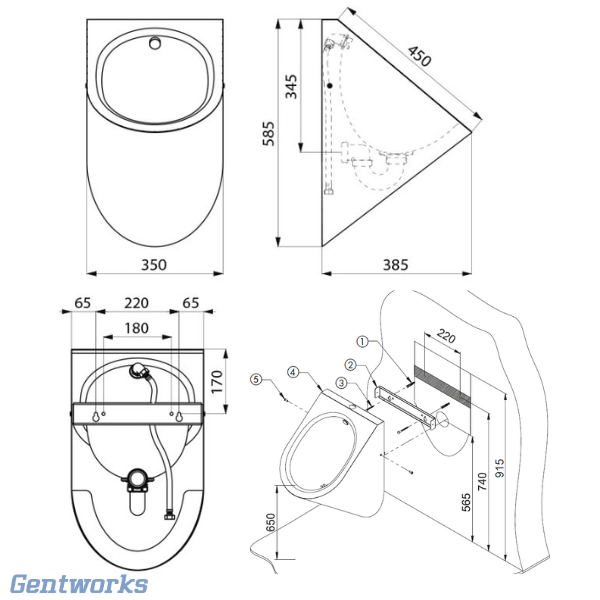

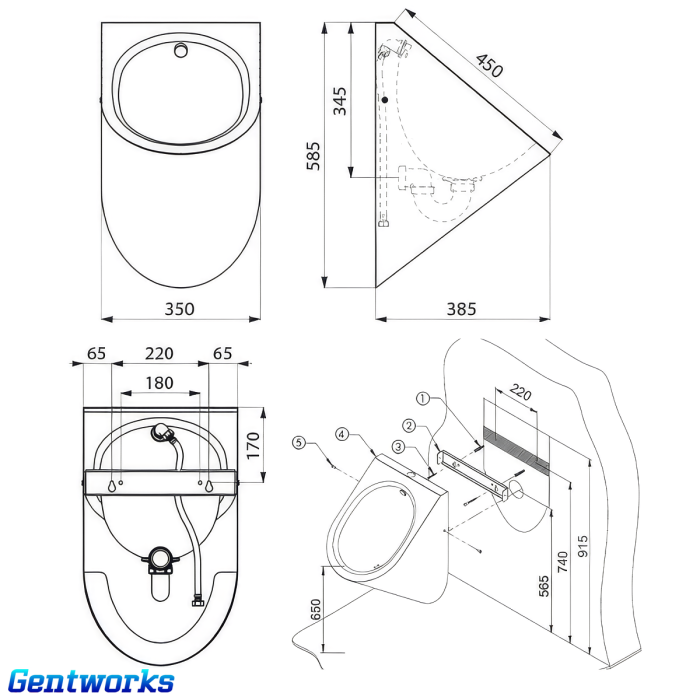

Bowl Dimensions:  Width= 350mm   Projection from wall = 385mm   Height = 585mm Weight= 7.5kg
