Optional Add-On Products for Wash Troughs and Basins
Please note that all options may not available, or appropriate, for every product.
| TYPE
B: Lever Basin Tap, Quarter Turn (available in pairs only)
The
lever basin tap is operated by a quarter turn lever and ceramic
disc for rapid on/off flow. It is manufactured from solid brass
and finished in a high polish chrome. Supplied with a 12mm (1/2")
BSP male inlet connection. |
|
|
| |
|
|
|
TYPE
C: Self-Closing ("push-taps")
The self
closing non-concussive basin tap provides savings in both water
usage and energy in all commercial and industrial environments.
The tap provides approximately 9 seconds duration of flow when
the push button top is depressed. The tap is available for either
hot or cold supply with each tap being supplied with a
red (hot) or blue (cold) index.
• Min operating pressure 0.5 bar
• Max operating pressure 5.0 bar
• Flow rate (at 1.0 bar) 2.0l/m
• Max inlet temperature 65°
|
|
|
| |
|
|
| TYPE
D: Economy Monobloc Lever Mixing Tap
The monobloc
mixing tap features a single lever sequential spray mixer providing
cold to hot through 180 degree operation of the lever. The lever
handle is easy to grip and can be operated by either hand or
wrist making the tap ideal for those with limited dexterity. Note:
this mixer tap is NOT thermostatic and a proprietary temperature
control device (TMV) should always be used on the hot water
supply to it.
• Min operating pressure 1.0 bar
• Max operating pressure 6.0 bar
• Preferred operating range 2 to 5 bar
• Flow rate (at 1.0 bar) 2.0l/m
• Max inlet temperature 65°
|
|
|
| |
|
|
| TYPE
K: Franke Self-Closing Pillar Tap (AQUA201W)
Franke AQUALINE-S self-closing pillar tap DN 15, noise group
I, for connection to cold water or pre-mixed warm water, flow
time adjustable, all-metalconstruction, polished chromium-plated
brass.For connection to pre-mixed warm water.
|
|
|
| |
|
|

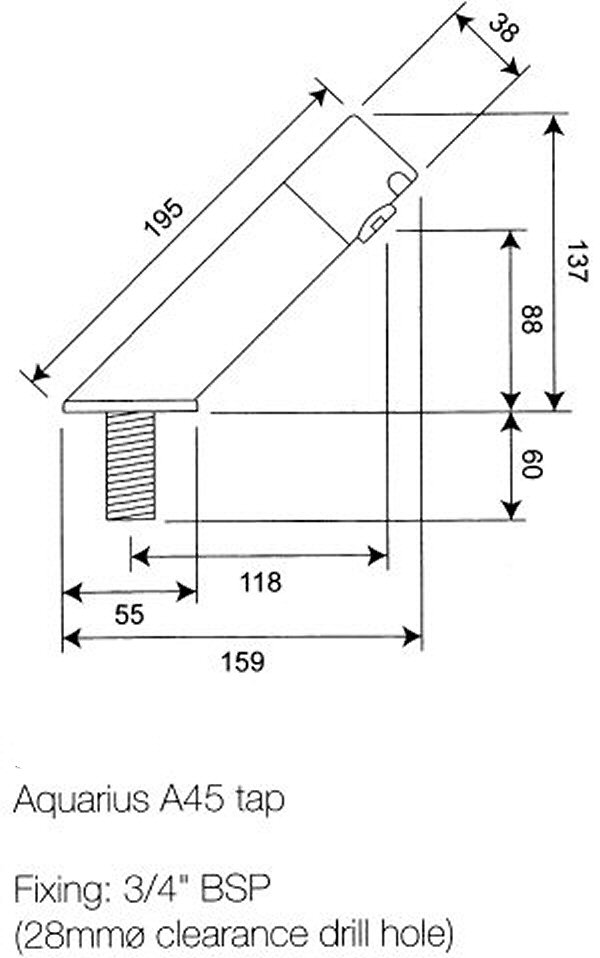

| TYPE M: DVS Aquarius A45 Sensor
Tap
Incorporating a modern and simple design, the A45 tap ensures
the ultimate in hygiene for the most discerning of clients. Perfect
for all applications where hygiene is paramount. The robust design
and build quality also makes it ideal for heavy industrial applications.
The A32 is manufactured from stainless steel, and with a solid
38mm stainless steel ingot for the head assembly. Click
here for more details. |
|
|
| |
|
|
| TYPE
F: Knee-Operated Timed Flow (unconcealed)
Self
closing concealed timed flow valve giving approximately 20 seconds
flow from each activation. Manufactured from solid brass and finished
in a high polish chrome. Suitable for use with a temperature controlled
water supply. Inlet and outlet compression fittings to suit 15mm
pipework.
The
deck mounted basin spout is manufactured from stainless steel
and is polished to a satin finish. The spout incorporates a 12
mm (0.5 in) BSP male inlet connection. |
|
|
| |
|
|
|

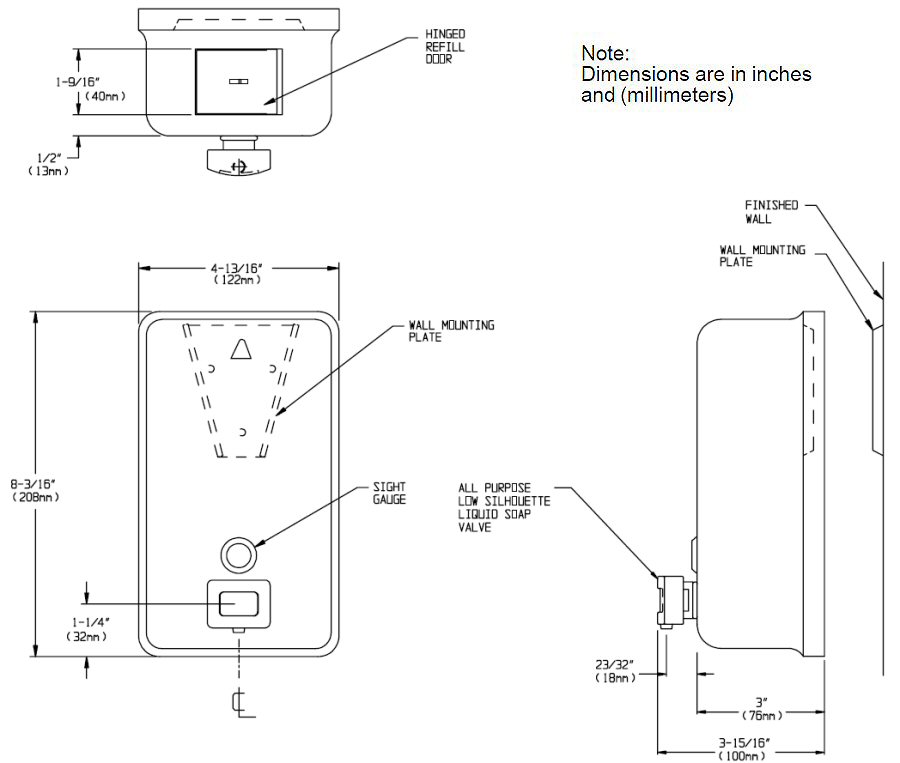

Stainless
Steel Soap Dispenser (711-G-3047)
Surface
mounted stainless steel liquid soap dispenser for vertical mounting
with concealed fastening and hinged filler top. Includes all-purpose
soap valve and unbreakable refill window. Capacity of 1.2 litres.
Dimensions:
122 x 208 x 76 mm |
|
click
here for diagram |
| |
|
|
|

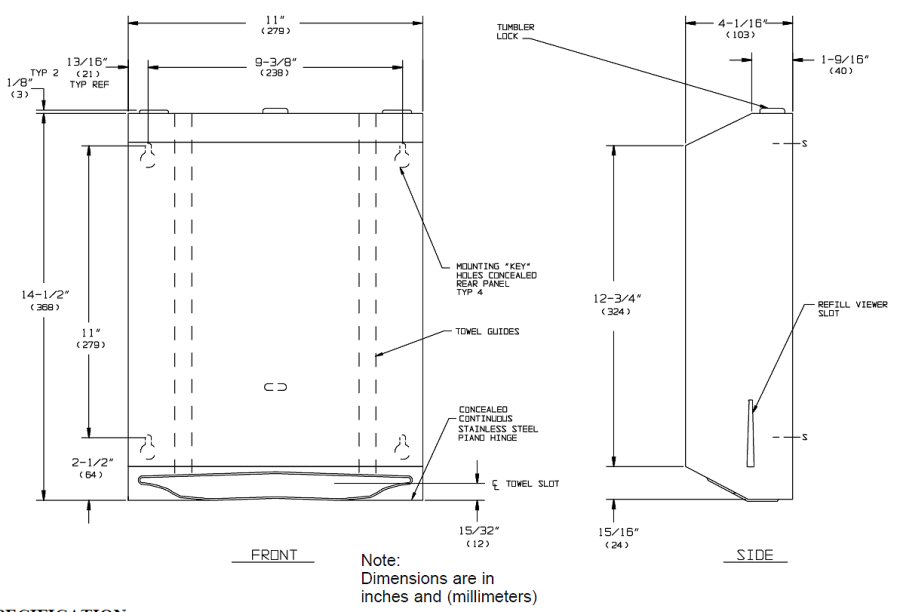

Stainless Steel Paper
Towel Dispenser (711-G-0210)
Dispenses
400 C-fold or 525 multi-fold paper towels without adjustment or
adapters. Constructed in .22 gauge stainless steel with a satin
finish. Fitted with tumbler lock and heavy duty stainless steel
piano hinge.
Dimensions: 280 x 370 x 103 mm |
|
click
here for diagram |
