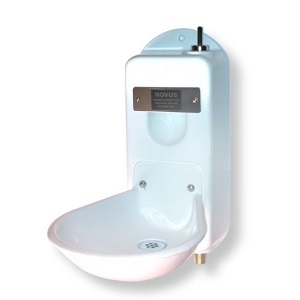

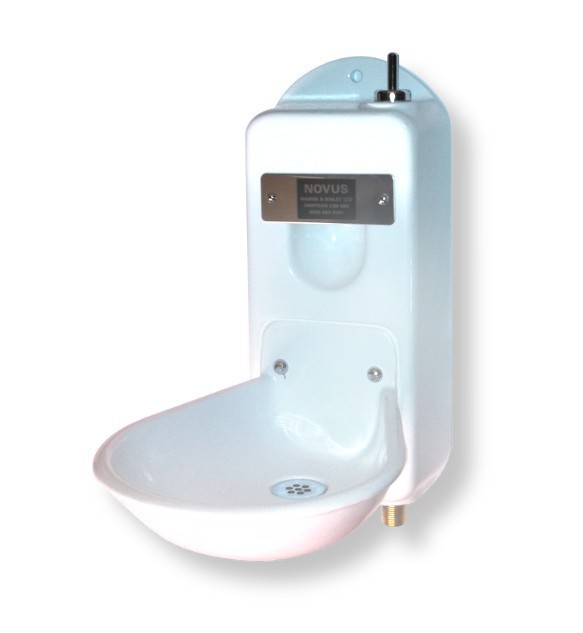

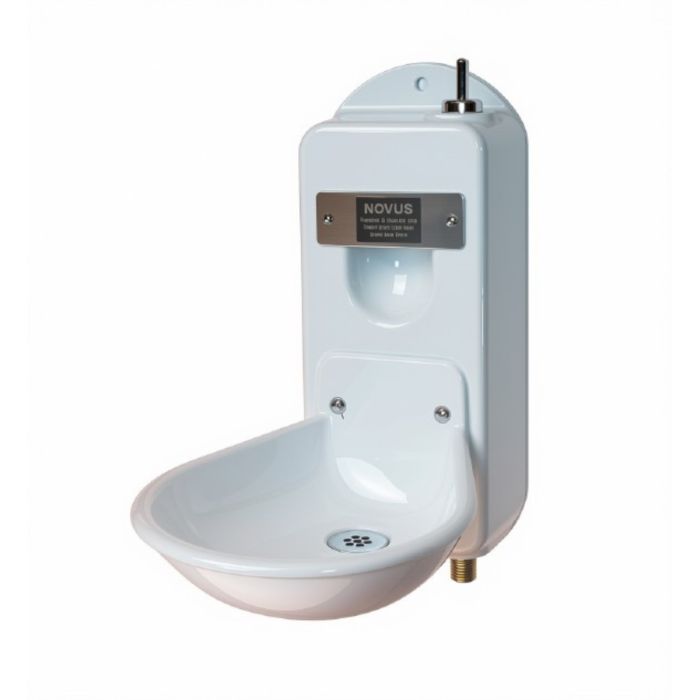

Drinking Fountain - Heavy Duty Cast Iron Wall Mounted - White

This traditional-style Cast Iron drinking fountain has been a fixture in some of the capital's schools for many years, and it is still being manufactured in London to this day.

Features
• Hygienic design - The water jet is located in a dished recess protected by a stainless steel cover plate which prevents contact with the nozzle.
• Bottle and cup filling - Innovative downward water jet design allows users the ability to fill sports bottles and is less sensitive to drops in water pressure.
• Easy operation - Toggle lever operation makes it easy for small children to operate and drink from, a slight push or pull being all that is necessary.

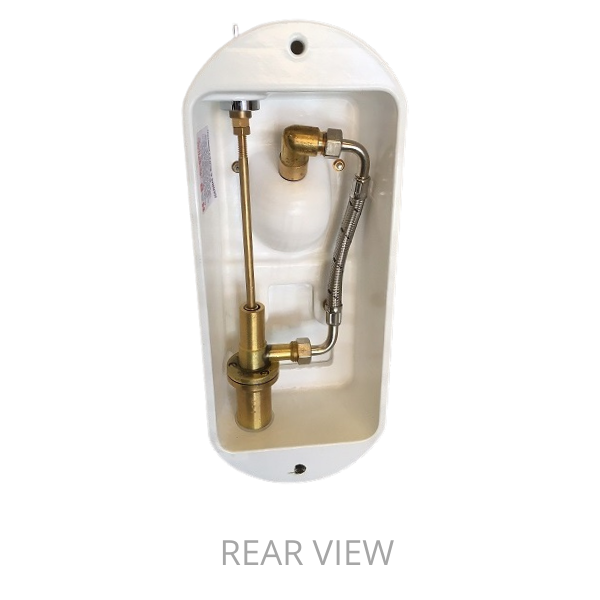

• Anti-tamper- Water control components are enclosed in the back structure reducing the risk of vandalism or tampering.
• Simple connections - Exposed water supply and waste drainage connections are made to the underside of the drinking fountain.
• Frost damage protection - If the water supply is accidently left on during freezing conditions a sacrificial flange washer prevents frost damage to valve (Washer available as a spare (NW86/15)

Pressures & operating conditions:
½” BSP exposed water inlet connection
¾” BSP exposed waste drainage connection (Optional 1¼” BSP waste adaptor is available HN01012)
Factory set to suit 2.8bar water pressure (Can be adjustable by the installer)

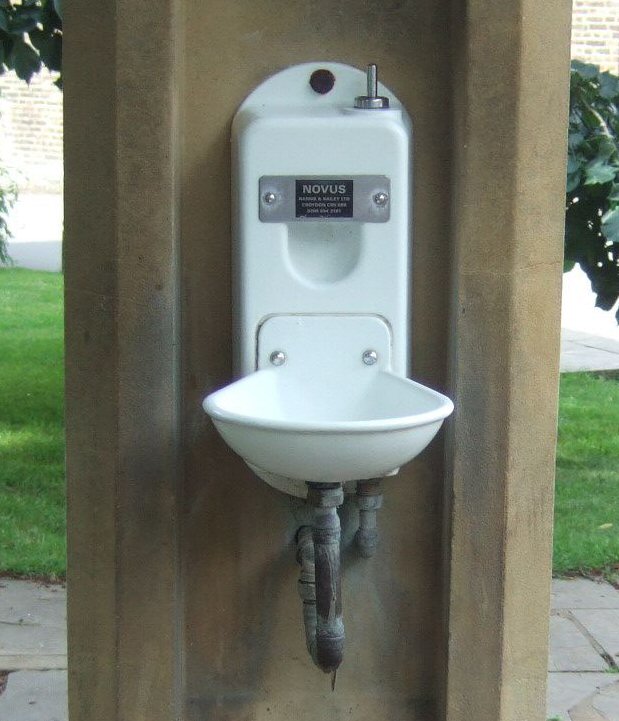

Due to the weight of the drinking fountain it is only suitable for fixing to solid walls or timber frame.

 DFNW-860 Novus Product Data Sheet

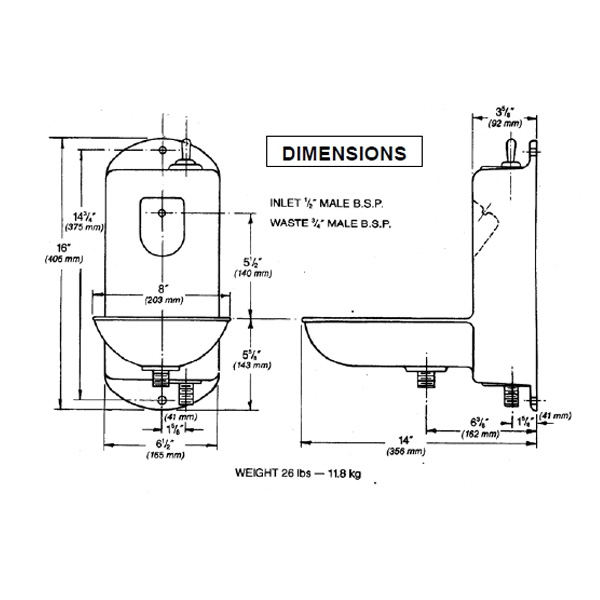

Dimensions:

Width: 203mm
Depth: 356mm (projection from wall)
Height: 406mm
Weight: 11.8Kg


 DFNW-860 Novus Installation and Maintenance Instructions
